SKU: NS-0318P-130

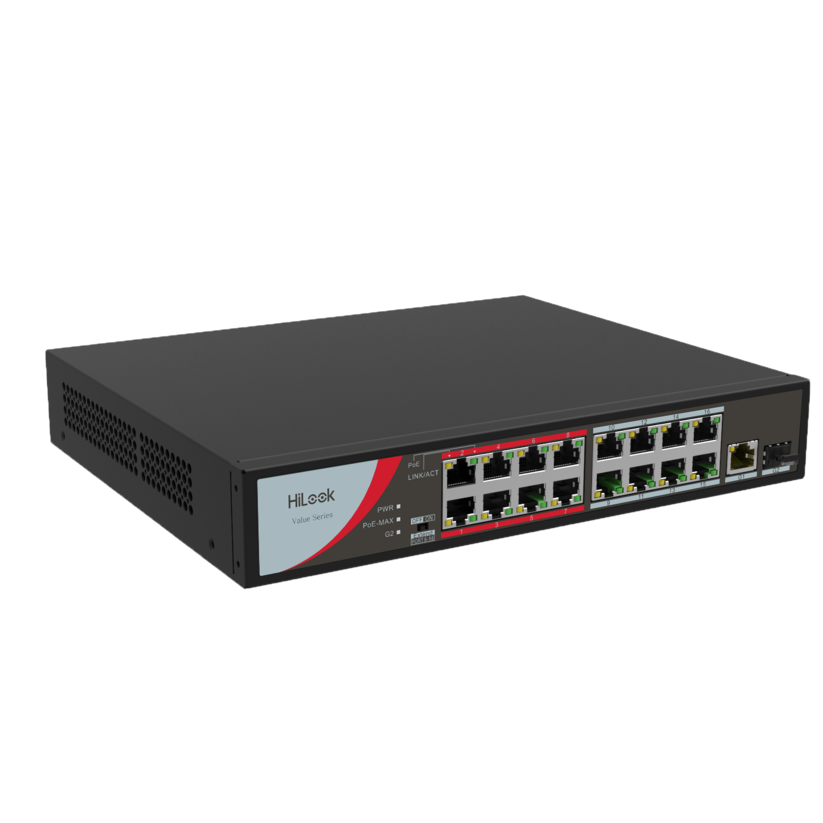

The HiLook NS-0318P-130 is a 16-port unmanaged PoE switch designed for IP CCTV, security and networking applications. It provides 16 × 10/100Mbps PoE ports, plus Gigabit RJ45 and SFP uplink connectivity. With a 130W PoE budget and up to 250m transmission distance on Ports 9–16 when Extend Mode is enabled, it is well suited for larger CCTV installations.
| Model | NS-0318P-130 |
|---|---|
| Specification | Details |
| PoE Ports | 16 × 10/100Mbps |
| Uplink | 1 × Gigabit RJ45 + 1 × Gigabit SFP |
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Budget | 130W |
| Max. Port Power | 30W |
| PoE power pin | Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply |
| Extended Distance | Up to 250m on Ports 9–16 |
| Switching Capacity | 8.8Gbps |
| MAC Address Table | 4K |
| Surge Protection | 6kV |
| Power Supply | 100–240VAC, 50/60Hz |
| Dimensions | 335 × 44.5 × 175.8mm |
| Operating Temperature | -10°C to 55°C |
