SKU: DH-IPC-PTS2649C-3E3Z-4GB20

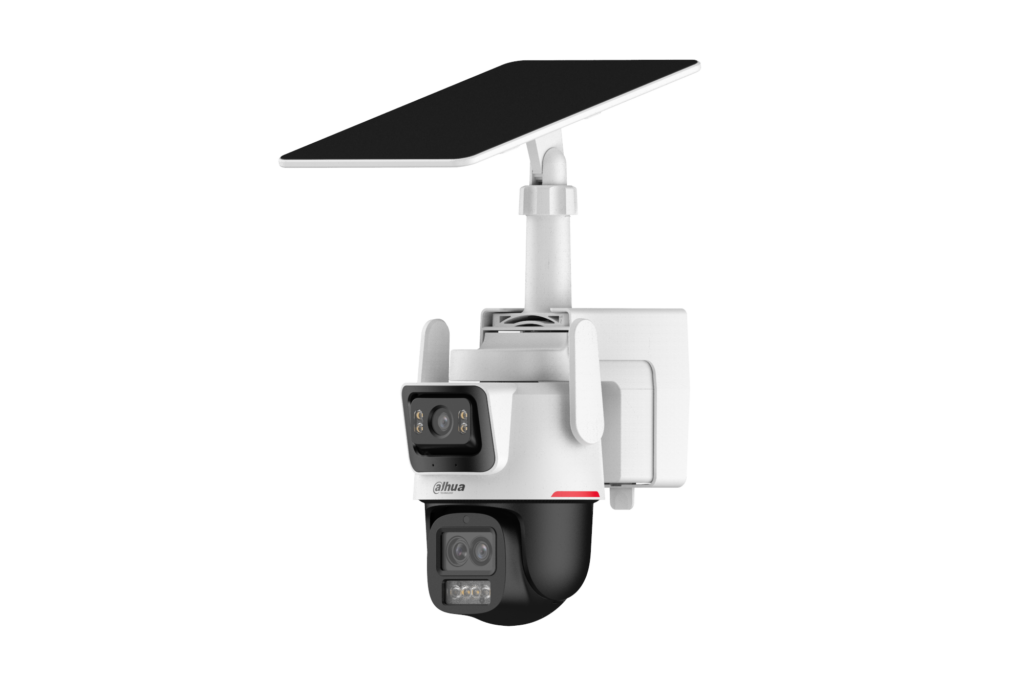

IPC-PTS2649C-3E3Z-4GB20 is a 3MP + 3MP WizColor Hybrid-Zoom PT 4G Solar Power Network Camera, designed for reliable remote surveillance without requiring wired network connectivity. It combines high-quality imaging, PT functionality, 4G connectivity, and solar-powered operation for flexible deployment in locations without mains power or network infrastructure.
| Model | DH-IPC-PTS2649C-3E3Z-4GB20 |
|---|---|
| Resolution | 3MP Fixed & 3MP Zoom 2304 (H) × 1296 (V) |
| Lens | Fixed |
| Fixed Lens | 2.8 mm: H: 93.5°; V: 51.9°; D: 110.1° |
| PT Lens | 3.6 mm: H: 81.5°; V: 44.3°; D: 96.3°, 8.4 mm: H: 15.1°; V: 8.4°; D: 17.8° |
| White Light | Fixed Lens: 30 m (98.43 ft) (Warm light), PT Lens: 50 m (164.04 ft) (Warm light) |
| WDR | 120dB True WDR |
| AI | Face detect, Tripwire, Intrusion |
| Carrier Network | 4G |
| Wireless Carrier Frequency | Band EAU/EUR: LTE-FDD: B1/B3/B5/B7/B8/B20/B28, LTE-TDD: B38/B40/B41; LA: LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66, LTE-TDD: B38/B40/B41 |
| Motion | SMD 3.0 |
| Power supply | Built in 65Wh lithium battery Comes with 8 W solar panel |
| Charging | USB Type-C (Supports QC2.0) |
| Power Consumption | Super Power Saving Mode: 40 mW (4G keep-alive) |
| AOV Mode | 170 mW (1 frame every 2 seconds, SD card recording, 4G keep-alive) |
| Performance Mode 1 | 2.4 W (4G streaming, SD card recording, PTZ static, illuminator off) |
| Performance Mode 2 | 3.7 W (4G streaming, SD card recording, PTZ static, illuminator on) |
| Maximum Power Consumption | 8.0W (4G streaming, SD card recording, PTZ moving, illuminator on, speaker on) |
| Power Adapter | Optional |
| Battery Capacity | 65 Wh |
| IP Rating | IP66 |
