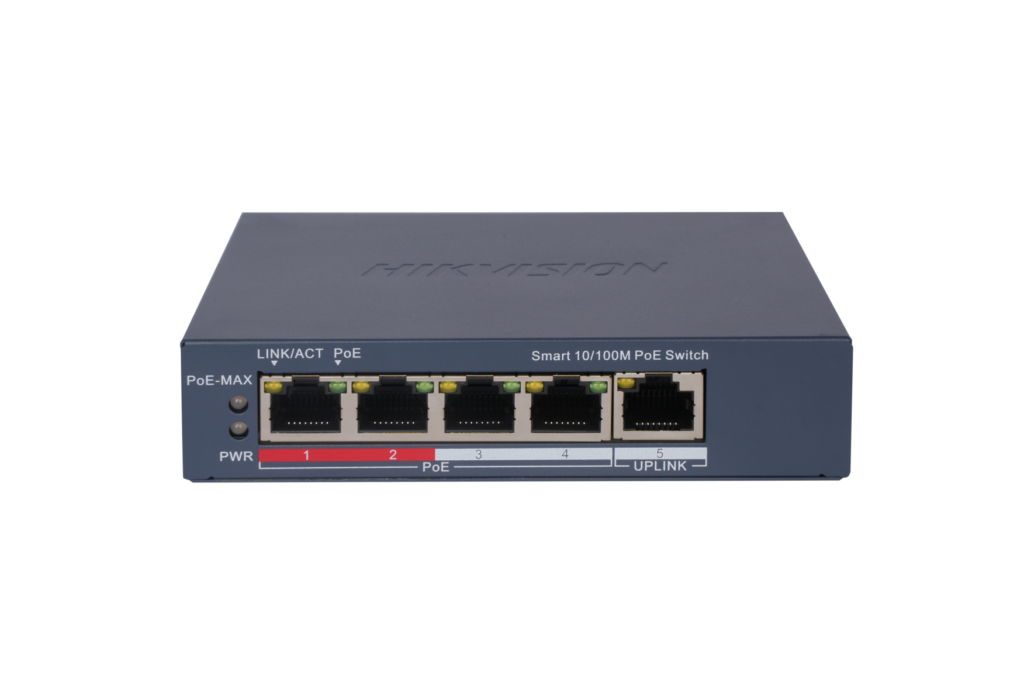

4 Port Fast Ethernet Smart POE Switch – DS-3E1105P-EI-V2

Networking Products Hikvision

4 Port Fast Ethernet Smart POE Switch – DS-3E1105P-EI-V2

SKU: DS-3E1105P-EI-V2

DS-3E1105P-EI-V2, HIKVISION 4 PORT POE MANAGED SWITCH - 1 UPLINK

🔒

Trade Account Required
Log in to see trade pricing and add to cart.

4 PoE Port

1 Uplink

60W PoE Budget

802.3af, at PoE Standard

4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port
6 kV surge protection for PoE ports
Total PoE Power Budget 60 W
Support 802.1Q VLAN
Support PoE watchdog to detect and restart the cameras that do not respond
Support STP/RSTP loop prevention
Support cable detection to locate failure
Up to 300 m Long Range PoE Transmission

DS-3E1105P-EI-V2 - 4 Port Fast Ethernet Smart POE Switch

Model	DS-3E1105P-EI-V2
Ports	4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port
MAC Address Table	2 K
Switching Capacity	1 Gbps
Packet Forwarding Rate	0.74 Mpps
PoE Standard	IEEE 802.3af,IEEE 802.3at
PoE Power Pin	End-span: 1/2(-), 3/6(+)
PoE Port	PoE: Ports 1 to 4
Max. Port Power	30 W
PoE Power Budget	60 W
Shell	Metal material
Net Weight	0.26 kg (0.573 lb)
Dimensions (W × H × D)	121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')

1x Switch
1x Power adapter
