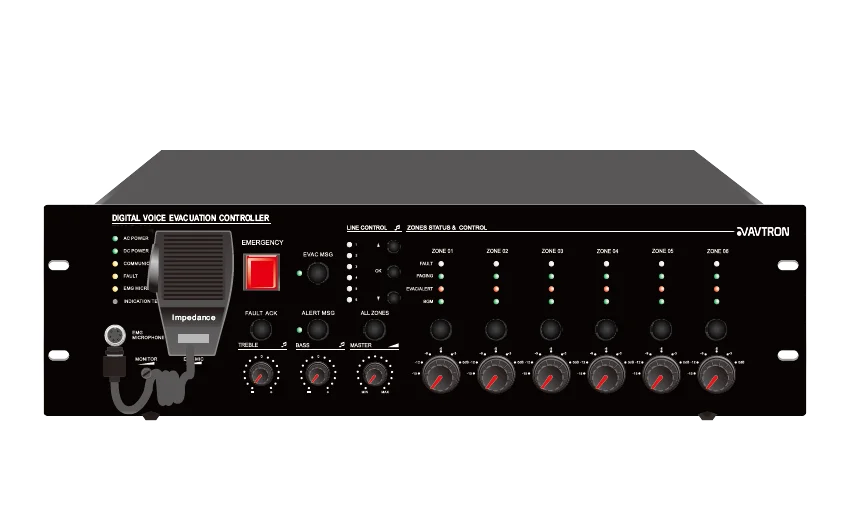

6-Zone EVAC Controller – 240W Class-D Amplifier – AP-D624EV

EN-54 Voice Evacuation AVTRON

6-Zone EVAC Controller – 240W Class-D Amplifier – AP-D624EV

Name: 6-Zone EVAC Controller – 240W Class-D Amplifier – AP-D624EV
Brand: AVTRON
SKU: AP-D624EV

SKU: AP-D624EV

A powerful all-in-one 6-zone voice evacuation controller featuring a built-in 240W Class-D amplifier, emergency voice messaging and fireman microphone. Designed for commercial and public facilities requiring reliable voice evacuation, emergency announcements and zoned public address.

🔒

Trade Account Required
Log in to see trade pricing and add to cart.

6 Zone EVAC

Voice Evacuation

240 Wattage

Class D Amplifier

240W Class-D Amplifier – Built-in high-efficiency amplifier for reliable 100V line audio distribution.
6-Zone Audio Control – Independent control and distribution across six speaker zones.
Voice Evacuation & Alert Messages – Supports pre-recorded emergency and alert messages via SD card.
Fireman Microphone – Dedicated emergency microphone with high-priority operation.
Speaker Line Supervision – AB speaker line monitoring helps detect speaker circuit faults.
Automatic Amplifier Changeover – Automatically switches to a standby amplifier connection in the event of an amplifier fault.
External Amplifier Expansion – Extension amplifier connection available for additional system capacity.
AC & DC Operation – Supports mains power and 24V DC battery backup for continued operation during mains failure.
All-in-One System – Combines voice evacuation, paging, public address and background music functions in one controller.
Expandable System – Suitable for larger installations when combined with compatible expansion equipment. Similar systems can support expansion to multiple zones.

AVTRON AP-D624EV - 6-Zone EVAC Controller – 240W Class-D Amplifier

Model	AP-D624EV
System Type	6-Zone Voice Evacuation Controller
Rated Power	240W
Zone	6 Zone
Amplifier Type	Class-D
Speaker System	100V Line
Speaker Monitoring	AB Line Supervision
Voice Messages	SD Card
Emergency Microphone	Fireman Microphone
Amplifier Backup	Automatic Changeover
Expansion	External/Extension Amplifier
Power Supply	AC 230V
Battery Backup	DC 24V
Frequency Response	80Hz–20kHz
THD	70dB
Event Memory	Up to 1,000 event records
Operating Temperature	+5°C to +40°C
Storage Temperature	-20°C to +70°C
Operating Humidity	<95%
Application	Voice Evacuation, PA, Paging & BGM
