SKU: AV-HD150-NE

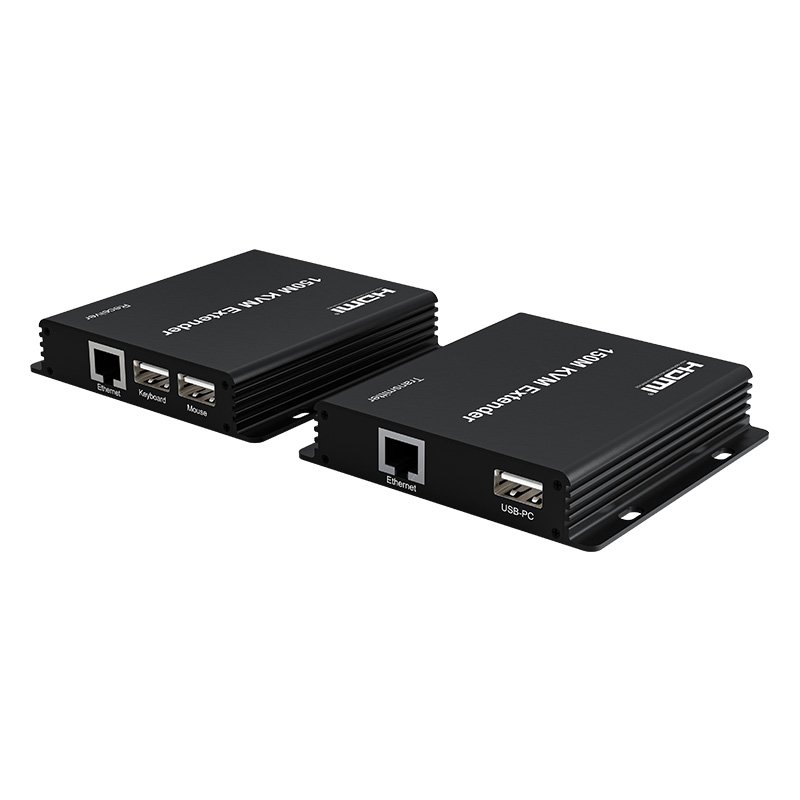

The AVTRON AV-HD150-NE is an HDMI KVM extender that sends HD video, plus USB keyboard and mouse, up to 150m over a single Cat6 cable. It supports point-to-point or cascade connection, carries IR remote control back to the source, and handles resolutions up to 1080P. Low power draw and plug-and-play setup make it a straightforward way to relocate a display and its controls away from the source equipment.
| Product | 150M HDMI KVM Extender Over CAT6 |
|---|---|
| Video Resolution | 480P/720P/1080 |
| Audio | LPCM |
| Video Format | 8Bit YCbYCr/RGB |
| Max Bandwidth | 148.5MHz |
| Max Baud Rate | 1Gbps |
| Input HDMI | AWG26 HDMI Standard, <10M |
| Output HDMI | AWG26 HDMI Standard, <15M |
| Interface | 1x Lan, 1x HDMI, 1x USB, 1x IR/Tx & RX device |
| Power supply | DC5V/1A |
| Operating Current | 400mA |
| Size | 90x91x19mm (LxWxH) |
| Weight | 121g x 2 |
| Lightning protection | 2kv 8/20us |
| Enclosure | Metal |
| State | Indoor |
