SKU: AP-C102Z

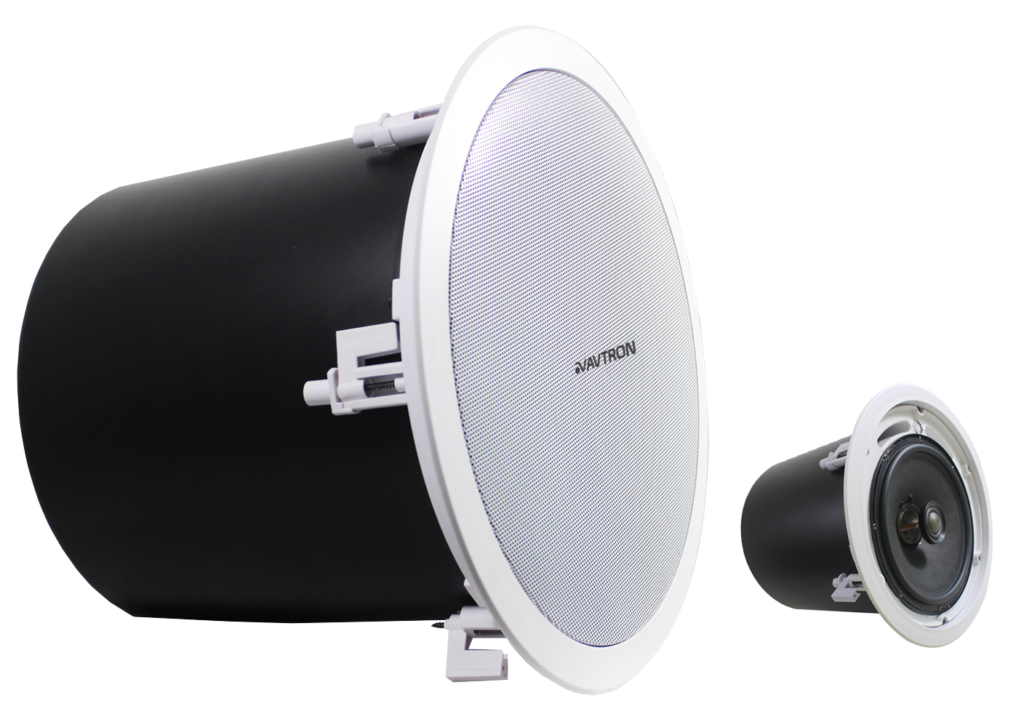

High power 10-inch ceiling subwoofer rated 240W with overload protection, adding sub bass to an existing ceiling speaker system, with taps at 240W, 120W and 60W.
The AP-C102Z is a ceiling subwoofer, designed to sit alongside standard ceiling speakers and supply the low end they physically cannot produce.
Adding one to an existing installation transforms background music in hospitality and retail spaces without replacing the speaker layout — the small ceiling speakers keep handling speech and mid-range, and the subwoofer fills in below them.
Response reaches down to 35Hz, roughly two octaves below what a 6-inch ceiling speaker manages, with maximum output to 112dB. Overload protection guards the driver where users push a system beyond its limits.
Multi-tapping covers 240W, 120W and 60W, or 240W at 4 ohms, taking 70V/100V line or 8 ohm input. The metal dome with ABS grille measures 360mm diameter x 330mm on a 330mm cutout, under 9.5kg, in white with black dome.
| Rated power out | 240W/120W/60W, 240W@4Ω |
|---|---|
| Rated power at 100V | - |
| Rated power at 70V | - |
| Line input | 70V/100V LMT or 8 Ohms |
| SPL | 89dB, Max up to 112dB |
| Speaker type | 10 inch |
| Freq. response | 35Hz - 15KHz |
| Cutout size | 330mm Dia. |
| Product dimension | 360(D) x 330mm(H) |
| Distortion | - |
| Installation | Ceiling |
| Enclosure | Metal dome & ABS grille |
| Back cover | - |
| Color | White & Black color dome |
| Weight | <9.5Kg |
