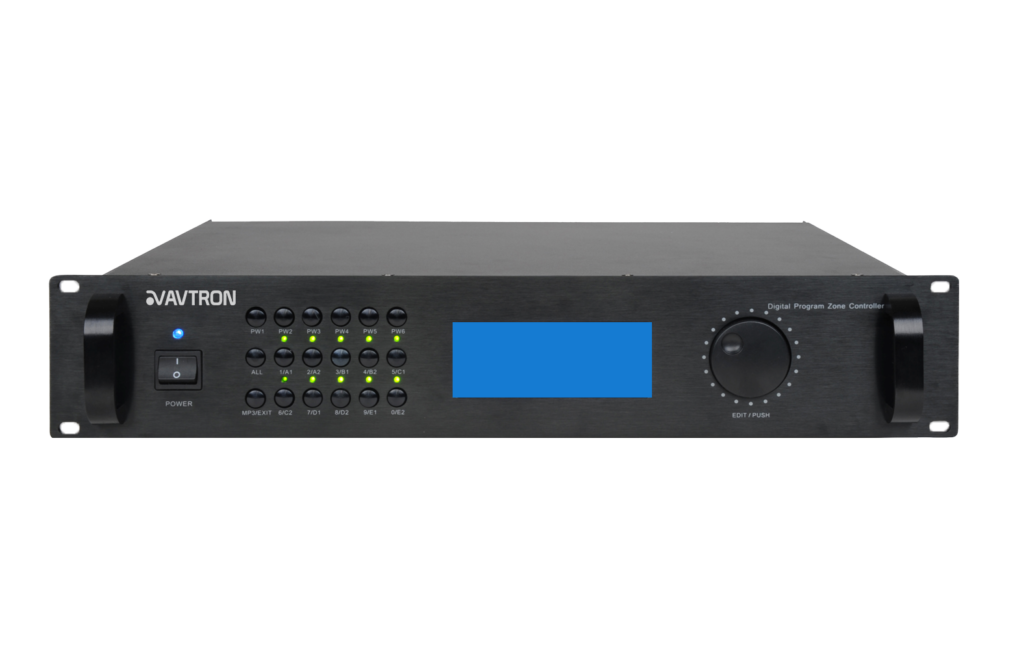

AVTRON 10 Zone Intelligent PA and Paging Controller – AP-MC210

Name: AVTRON 10 Zone Intelligent PA and Paging Controller – AP-MC210
Brand: AVTRON
SKU: AP-MC210

SKU: AP-MC210

Ten-zone PA controller combining a weekly timer, paging and speaker selection, MP3 player and fire alarm integration in one unit, with a 192x64 LCD and 512-step programming.

🔒

Trade Account Required
Log in to see trade pricing and add to cart.

The AP-MC210 replaces the stack of separate boxes a conventional analogue PA rack needs. Weekly scheduling, paging, speaker selection, MP3 playback, fire alarm integration and voice evacuation all live in one controller.

Programming runs to 512 steps across five time modes — four normal programmes plus a dedicated emergency mode — with up to 200 steps in a single day. That covers a school bell timetable, shift changes and seasonal variations without external scheduling hardware.

The 192 x 64 LCD and light-touch buttons give direct control of ten individual zones, all zones, music or paging selection and MP3 transport, with a backup switch for fallback operation.

Five integrated 100V input channels are provided, along with EMC input and output on 0V short circuit industrial standard for fire panel integration. Communication uses RS485, RS232 and RS422 with two RJ45 ports for remote microphones.

Cost effective advanced public address system intelligent controller
PA controller single system included weekly timer, paging & speaker selector, Mp3 player, Integration with fire alarm, voice evacuation and power sequencer
1 timer, 1 monitor, 10 zone speaker selector, 6CH power sequencer and Mp3 player
Master controller supports 10 zones and Expandable up to 80 zones(optional 160 zones)
Announcement in Neighbor or All zones, When receive signal, automatically trigger alarm
Different modes of broadcast like random, repeat and circle
Priority broadcast control for auto BGM and manual
Full functional keypad to easy and fast access for Paging, Priority and BGM
High power handling capacity up to 5KW
Long communication distance up to 1KM for paging devices
Ideally for school, shopping mall, warehouse, hotel and many more
Power off memory function
19” Ready rack mount installation design

AVTRON AP-MC210 - 10 Zone Intelligent PA and Paging Controller

100V Input	Integrated Terminal 5 Channels
EMC Input and Output	Integrated Terminal Block, 0V(Short Circuit) Industrial Standard
Amplifier Input and Output	0.5W
Indication Method	192x64 LCD display
Audio Output	1KΩ 0.775V Unbalance(6.35 RC), 0V(Short Circuit) Industrial Standard
Function Button	Light touch buttons, MP3 control, 1 backup switch, 10zones, all zones, 1 music or paging, menu button, Power
Monitor Volume Attenuator	24 hours(hour-minutes-seconds) weekly
Time Mode	Total 5pcs(4 normal programs, 1EMC)
Program Quantity	Total 512 Steps, 1 day 200 Steps
Program Steps	RS422
Communication Protocols	RS485 and RS232
Communication Port	Two RJ45 ports for remote Microphone, one RS232 port for PC
Communication Speed	4800bps
MP3 Frequency Response	20Hz~20KHz/ 1dB
Mp3 Store Format	Compatible FAT12, FAT16, FAT32
Power Input	200-240V AC, Fuse Protection
Power Consumption	<15W
Mount	2U 19" Rack Mount, Table Top
Enclosure & Color	Full Metal, Black
Dimension & Weight	89(H) x 483(W) x 303(D) mm, <7Kg

AVTRON 10 Zone Intelligent PA and Paging Controller – AP-MC210

AVTRON AP-MC210 - 10 Zone Intelligent PA and Paging Controller
