SKU: AP-EC10P

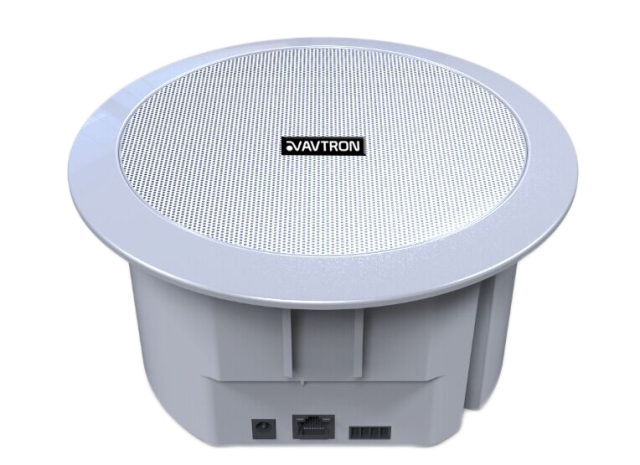

6-inch PoE network ceiling speaker with a built-in Class D amplifier and decoder, running on 802.3af or 802.3at with no separate amplifier or speaker cabling.
The AP-EC10P collapses an entire audio chain into a ceiling tile: network decoder, Class D amplifier and 6-inch full-range driver in one unit, fed by a single Cat cable.
Because it accepts both 802.3af and 802.3at, it works with the switches already in most buildings. Adding a zone means patching a port, not pulling 100V speaker line back to a plant room — the reason this approach wins in fit-outs and heritage buildings.
Speakers can be assigned to groups or addressed individually from the system server, so a single ceiling speaker is its own zone if the site needs it to be.
Rated 6W RMS with 10W peak at 92dB SPL (1W/1M), response runs 100Hz-18kHz ±3dB with distortion at or under 1% and signal-to-noise of 85dB or better. The 200mm white ABS enclosure with metal grille needs a 165mm cutout, weighs under 1.5kg, and is rated -30°C to 55°C.
| Rated power | 6Watts RMS & Max. 10Watts(1KHz@-3dB) |
|---|---|
| Built-in amplifier | 2x6W RMS & 10W |
| Speaker type | N.A |
| Power | DC-12V, POE 802.3af or POE 802.3at |
| Cutout size | Dia 165mm |
| Dimension | Dia 200 x 100mm (H) |
| SPL | 92dB at 1W/1M |
| Network port | RJ-45(10/100Mbps) |
| Network protocol | TCP, UDP, IGMP, ARP, ICMP |
| Audio type | MP3, MP2 |
| Audio bitrate | 8kHz-48khz, 16bit, 8K-512Kbps |
| Frequency response | 100Hz-18KHz(±3dB) |
| THD | ≤1% |
| S/N ratio | ≥85dB |
| Working temp. | -30 ℃ ~ 55 ℃ |
| Installation | In Ceiling |
| Enclosure | ABS plastic, Metal grill, Back cover plastic |
| Color | White |
| Weight | <1.5Kg |
