SKU: AP-P24

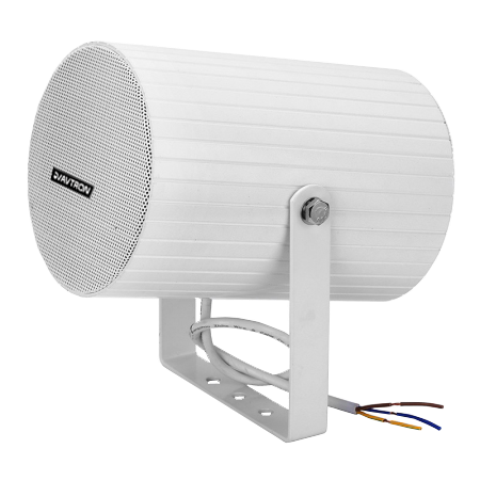

IP66-rated 10W outdoor projection speaker with a 5-inch full-range woofer in a full metal enclosure, with taps at 10W, 5W and 2.5W and a waterproof cable gland.
The AP-P24 is a projection speaker — an aimed cylinder that throws sound in one direction rather than spreading it, useful along walkways, platforms and under canopies where coverage needs to follow a path.
A 5-inch full-range woofer covers 130Hz-17kHz with 90dB sensitivity and maximum output to 101dB, giving it more musical range than a horn of the same power.
The full metal enclosure and grille with IP66 rating suit permanent outdoor mounting, and the waterproof cable tail gland seals the wiring entry — the point where outdoor speakers most often fail.
Taps are 10W, 5W and 2.5W on 70V or 100V line, with a built-in bracket for wall or ceiling mounting. It measures 140mm diameter x 210mm at under 2.5kg in white.
| Rated power output | 10W/5W/2.5W |
|---|---|
| Line input | 70V/100V LMT |
| SPL | 90dB at 1W/1M, Max. up to 101dB |
| Freq. response | 130Hz-17KHz |
| Speaker type | 5"x1 full range woofer |
| Installation | Wall and Ceiling |
| Mount | Built in wall mount bracket |
| Enclosure | Full Metal Enclosure included grille |
| IP protection | IP66 |
| Connector | Waterproof Cable tail gland |
| Color | White |
| Product dimension | 140(D) x 210(H)mm |
| Weight | <2.5Kg |
