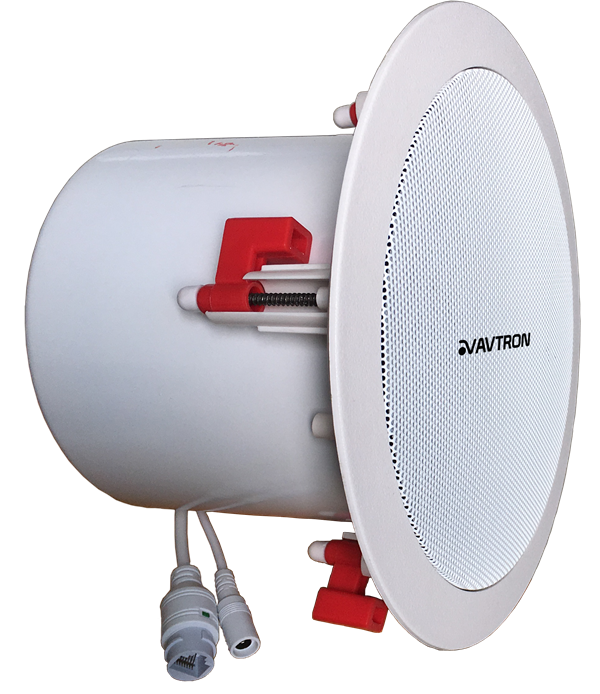

SKU: AP-SC10P
6-inch SIP ceiling speaker with a built-in Class D amplifier, powered over 802.3af or 802.3at PoE and registering directly to a phone system as an endpoint.
The AP-SC10P is a ceiling speaker that behaves like a phone extension. Registering to the phone system over SIP, it can be dialled directly or joined into a paging group — no PA server, no separate control software.
Amplifier, decoder and 6-inch full-range driver are all in the unit, fed by a single Cat cable carrying 802.3af or 802.3at PoE. Adding a zone is a patch, not a cable pull.
Rated 6W RMS with 10W peak at 92dB SPL (1W/1M), it covers 100Hz-18kHz ±3dB with distortion at or under 1% and signal-to-noise of 85dB or better, handling MP3 and WAV at 8-512kbps.
The white ABS enclosure with metal grille is 200mm diameter x 100mm needing a 165mm cutout, weighs under 1.5kg, and is rated -30°C to 55°C.
| Rated power | 6Watts RMS & Max. 10Watts(1KHz@-3dB) |
|---|---|
| Built-in amplifier | 2x6W RMS & 10W |
| Network protocol | SIP, DNS, DHCP, TCP |
| Speaker type | N.A |
| Power | DC-12V, POE 802.3af or POE 802.3at |
| Cutout size | Die 165mm |
| Dimension | Die 200 x 100mm (H) |
| SPL | 92dB at 1W/1M |
| Network port | RJ-45(10/100Mbps) |
| Audio type | MP3/WAV |
| Audio bitrate | 8kHz-48khz, 16bit, 8K-512Kbps |
| Frequency response | 100Hz-18KHz(±3dB) |
| THD | ≤1% |
| S/N ratio | ≥85dB |
| Working temp. | -30 ℃ ~ 55 ℃ |
| Installation | In Ceiling |
| Enclosure | ABS plastic, Metal grille, Back cover plastic |
| Color | White |
| Weight | <1.5Kg |
