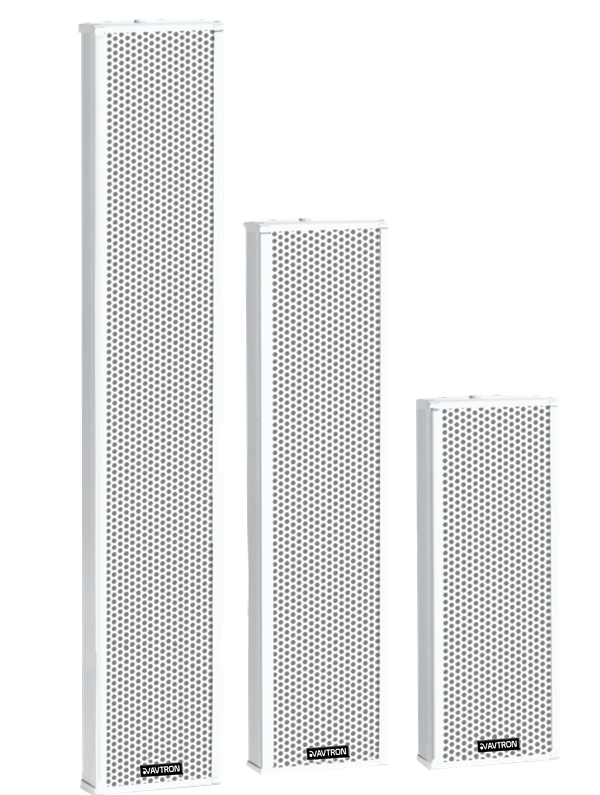

SKU: AP-SC120
120W RMS SIP column speaker with a built-in Class D stereo amplifier and 16-bit DAC audio processor, in a 1384mm aluminium enclosure for long-throw outdoor coverage.
The AP-SC120 is the full-height SIP column at nearly 1.4 metres, for the open distances that defeat smaller speakers: forecourts, interchanges, large yards and stadium approaches.
A Class D stereo amplifier and 16-bit DAC digital audio processor sit inside the column, keeping the signal digital right up to amplification — which is why a long cable run does not degrade what comes out.
SIP registration puts the column on the phone system as a dialable endpoint, alongside TCP, UDP and IGMP support for group broadcast.
Codec support spans MP3, WMA and WAV at 8-512kbps across 130Hz-16kHz ±3dB. The white aluminium enclosure measures 1384 x 227 x 125mm at 12.5kg on a 24V DC supply, rated -30°C to 55°C.
| Rated power | RMS 120W |
|---|---|
| Built-in amplifier | N.A |
| Network protocol | TCP,UDP,IGMP |
| Speaker type | N.A |
| Power | DC-24V |
| Cutout size | N.A |
| Dimension | 1384(H)x227(W)x125(D)mm |
| SPL | N.A |
| Network port | RJ-45(10/100Mbps) |
| Audio type | MP3/WMA/WAV |
| Audio bitrate | 8K-512Kbps |
| Frequency response | 130Hz - 16KHz(±3dB) |
| THD | N.A |
| S/N ratio | N.A |
| Working temp. | -30 ℃ ~ 55 ℃ |
| Installation | Column/Wall mount outdoor |
| Enclosure | Aluminum, White finish |
| Color | N.A |
| Weight | 12.5kg |
