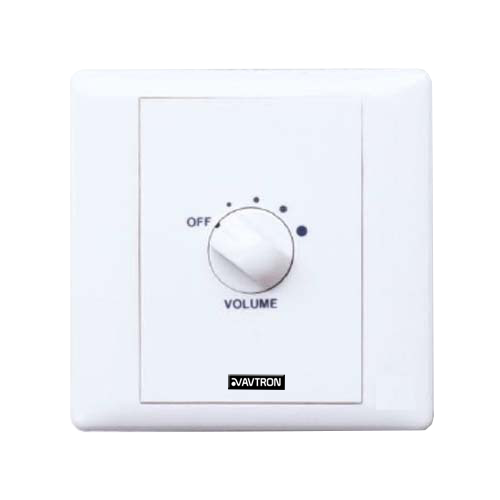

SKU: AP-VC120
120W five-step volume controller for 100V and 70V line systems, attenuating 3dB per step to 33dB total from a UV-protected white ABS wall plate.
The AP-VC120 is the high-power attenuator in the AVTRON wall controller range, rated to 120W for zones carrying a substantial speaker load — a warehouse aisle, a large retail floor, a function room fed from a single tap.
Five resistive steps drop 3dB each for 33dB of total attenuation, which is enough to take a zone from full level to near-silent while keeping the steps musically even. The built-in transformer accepts either 100V or 70V line inputs.
The plate is UV-protected ABS in white, 86 x 86mm with a 60mm depth behind the wall, and mounts surface or flush. At under 100g it adds no meaningful load to a plasterboard box.
| Color | White |
|---|---|
| Power Rating | 120W |
| Line Input | 100V or 70V |
| Volume Step | 5 steps Resistive, Mono |
| Attenuation Per Step | 3dB |
| Total Attenuation | 33dB |
| Enclosure | UV-protected ABS |
| Color | White |
| Mounting Way | Surface Mount or in-Wall Mount |
| Product Depth | 60mm |
| Outer Plate Dimension | 86(W)×86(D)mm |
| Weight | <100g |
