SKU: AP-EH15P

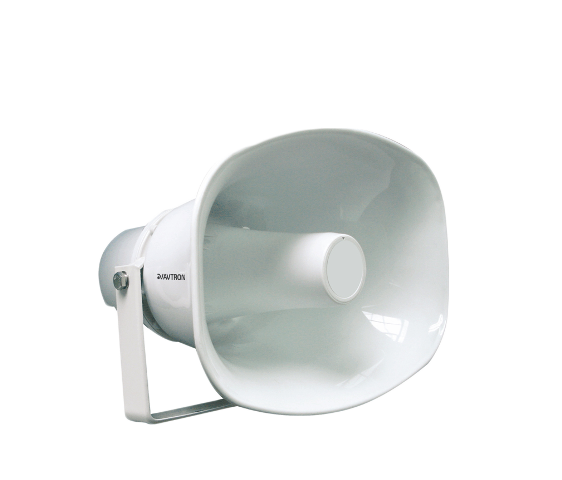

Outdoor PoE network horn speaker rated 15W RMS with 30W peak, with a built-in Class D amplifier and aluminium U-bracket for wall or pole mounting.
The AP-EH15P covers the outdoor and industrial areas that ceiling speakers cannot: yards, loading docks, car parks, plant areas. Amplifier and network decoder are built in, so it needs only a network cable carrying PoE.
Both 802.3af and 802.3at are supported, and the horn can be grouped with other endpoints or addressed on its own from the system server.
The aluminium U-shaped bracket allows wall or pole mounting and holds aim once set, which matters for a horn where coverage depends on where it points.
Sensitivity is 92dB at 1W/1M with response from 100Hz-18kHz ±3dB, distortion at or under 1% and signal-to-noise of 85dB or better. The white-finished aluminium unit measures 290 x 280 x 210mm at under 2.2kg and operates from -30°C to 55°C.
| Rated power | 15Watts RMS & Max. 30Watts (1KHz@-3dB) |
|---|---|
| Built-in amplifier | Class-D |
| Speaker type | N.A |
| Power | DC-12V, POE 802.3af or POE 802.3at, 30W RMS at DC-12V |
| Cutout size | N.A |
| Dimension | N.A |
| SPL | 92dB at 1W/1M |
| Network port | RJ-45(10/100Mbps) |
| Network protocol | TCP, UDP, IGMP, ARP, ICMP |
| Audio type | MP3, MP2 |
| Audio bitrate | 8K-512Kbps |
| Frequency response | 100Hz-18KHz(±3dB) |
| THD | ≤1% |
| S/N ratio | ≥85dB |
| Working temp. | 290(W) x 280(D) x 210(H)mm |
| Installation | -30 ℃ ~ 55 ℃ |
| Enclosure | Wall/Pole Mount, U-shaped Bracket (Aluminum) |
| Color | Aluminum, White Finish, Outdoor |
| Weight | <2.2Kg |
