SKU: AP-SH15P

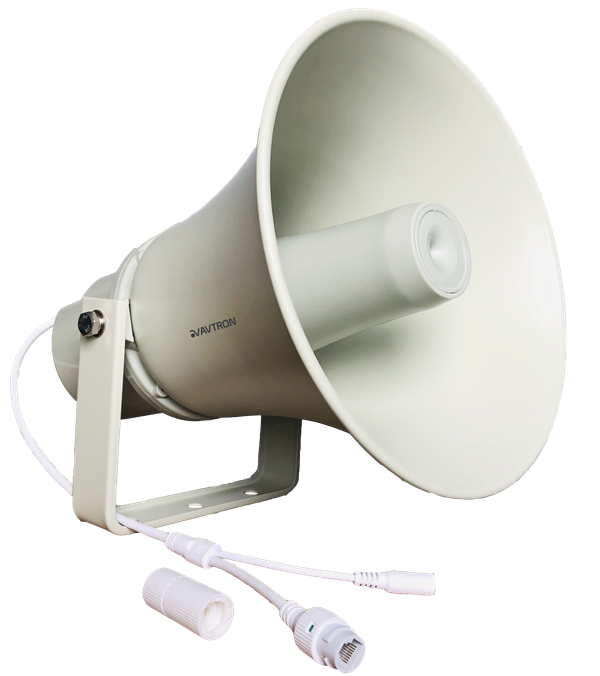

Outdoor SIP horn speaker rated 15W RMS with 20W peak, powered over 802.3af or 802.3at PoE, with a built-in Class D amplifier and aluminium U-bracket.
The AP-SH15P covers outdoor and industrial areas on a SIP system, taking a single PoE cable to a horn that registers to the phone system as its own endpoint.
Compatibility with both 802.3af and 802.3at means it runs on the switches most sites already have, and speakers can be grouped or zoned so one horn or a whole yard responds to a page.
The aluminium U-bracket mounts to a wall or pole and holds aim, which decides coverage for any horn.
Sensitivity is 92dB at 1W/1M with response from 100Hz-18kHz ±3dB, distortion at or under 1% and signal-to-noise of 85dB or better on MP3 and MP2 at 8-512kbps. The white aluminium unit is 200mm diameter x 230mm at under 2.8kg, rated -30°C to 55°C.
| Rated power | 15Watts RMS |
|---|---|
| Built-in amplifier | 15W RMS & Max. 20W |
| Network protocol | SIP, DNS, DHCP, TCP |
| Speaker type | N.A |
| Power | DC-12V, POE 802.3af or POE 802.3at |
| Cutout size | N.A |
| Dimension | 200(D) x 230(H)mm |
| SPL | 92dB at 1W/1M |
| Network port | RJ-45(10/100Mbps) |
| Audio type | MP3, MP2 |
| Audio bitrate | 8K-512Kbps |
| Frequency response | 100Hz-18KHz(±3dB) |
| THD | ≤1% |
| S/N ratio | ≥85dB |
| Working temp. | -30 ℃ ~ 55 ℃ |
| Installation | Wall/Pole mount, U-shaped bracket(aluminium) |
| Enclosure | Aluminum, White, Outdoor |
| Color | N.A |
| Weight | <2.8Kg |
