SKU: AP-S9A15
SIP-native 2 x 15W PoE wall amplifier that registers to a phone system as an endpoint, driving speakers directly over LAN or WAN with under 100ms delay.

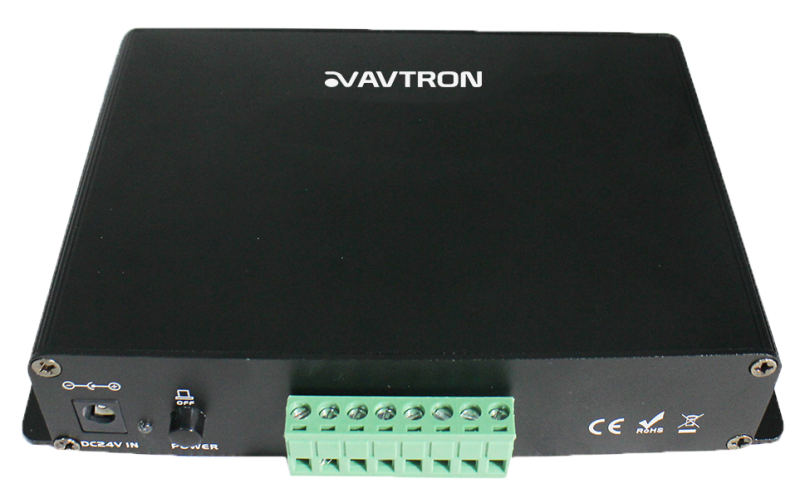

The AP-S9A15 is the SIP version of AVTRON's mini wall amplifier. Rather than needing PA-specific server software, it registers to an IP phone system as an endpoint — so paging becomes an extension someone dials, and the phone system already on site becomes the paging system.
That removes an entire software layer for organisations that have a PBX but no dedicated PA server, and it means paging permissions follow the phone system's existing rules.
An ARM and DSP processor drives 2 x 15W directly into speakers, with an analogue audio output for feeding an external amplifier. Power comes from PoE or 12-24V DC.
Codec support spans ADPCM, MP3, MP2, PCM, WMA and WAV at 8-44.1kHz, holding delay under 100ms with signal-to-noise of 90dB or better across 20Hz-22kHz. The full-metal black unit is 30 x 100 x 70mm at under 0.7kg.
| Power out | 2 x 15W |
|---|---|
| Audio output | 1 Audio out, 1 Speaker out |
| Volume control | Yes |
| Network protocol | SIP,TCP,UDP,DNS,ARP,IGMP,ICMP |
| Network speed | RJ-45(10/100Mbps) |
| Audio compression | ADPCM,MP3, MP2, PCM, WMA,WAV |
| Audio bitrate | 8kHz-44.1kHz |
| Audio delay | <100 ms |
| S/N ratio | ≥90dB |
| Frequency | 20Hz-22KHz |
| Power Input | DC-12V, DC-24V or POE |
| Mount | Wall mount or Table top |
| Working temp. & Humidity | -10 ℃ ~ 50 ℃, ≤ 90%RH (Not condensing) |
| Enclosure & Color | Full Metal, Black |
| Dimension & Weight | 30(H) x 100(W) x 70(D) mm, <0.7Kg |
