SKU: AP-SW15P
Two-way SIP wall speaker with a 5-inch woofer and 1.5-inch tweeter, 15W RMS Class D amplification and PoE power on 802.3af or 802.3at.

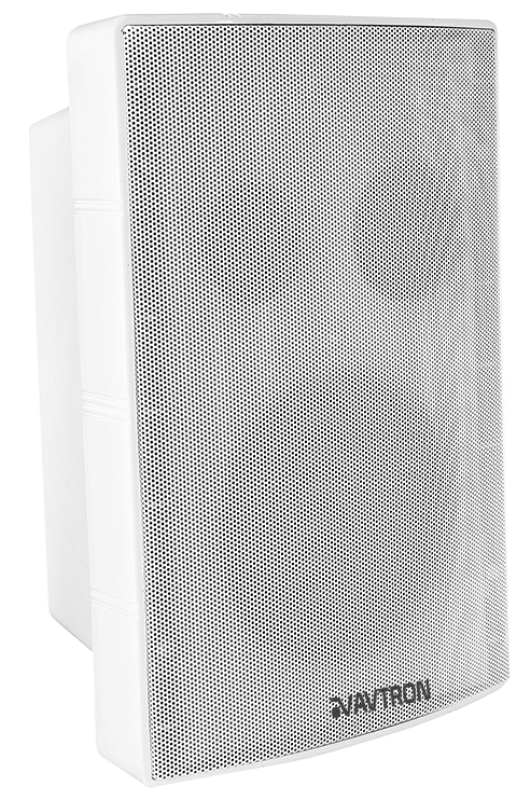

The AP-SW15P is the wall-mount SIP speaker, for spaces with no ceiling void — exposed-services offices, warehouses, corridors with solid soffits.
A two-way design with a 5-inch woofer and 1.5-inch tweeter gives it the range to carry background music as well as speech, which single-driver units in this class struggle with.
Amplifier and SIP decoder are built in, powered over 802.3af or 802.3at PoE with 12V DC as an alternative. The speaker registers to the phone system and can be dialled alone or paged as part of a group.
Sensitivity is 92dB at 1W/1M across 100Hz-18kHz ±3dB, distortion at or under 1%, signal-to-noise 85dB or better. The UV-protected ABS body with black or white metal grille measures 295 x 195 x 155mm at under 4kg, rated -30°C to 55°C.
| Rated power | 15Watts RMS |
|---|---|
| Built-in amplifier | 15W RMS & Max. 20W |
| Network protocol | SIP, DNS, DHCP, TCP |
| Speaker type | Two-Way 5"woofer + 1.5" tweeter |
| Power | DC-12V, POE 802.3af or POE 802.3at |
| Cutout size | N.A |
| Dimension | 295(H) x 195(W) x 155(D)mm |
| SPL | 92dB at 1W/1M |
| Network port | RJ-45(10/100Mbps) |
| Audio type | MP3, MP2 |
| Audio bitrate | 8K-512Kbps |
| Frequency response | 100Hz-18KHz(±3dB) |
| THD | ≤1% |
| S/N ratio | ≥85dB |
| Working temp. | -30 ℃ ~ 55 ℃ |
| Installation | Wall mount, U-shaped bracket(aluminium) |
| Enclosure | ABS plastic(UV-protected), Metal grille(black or white) |
| Color | N.A |
| Weight | <4Kg |
