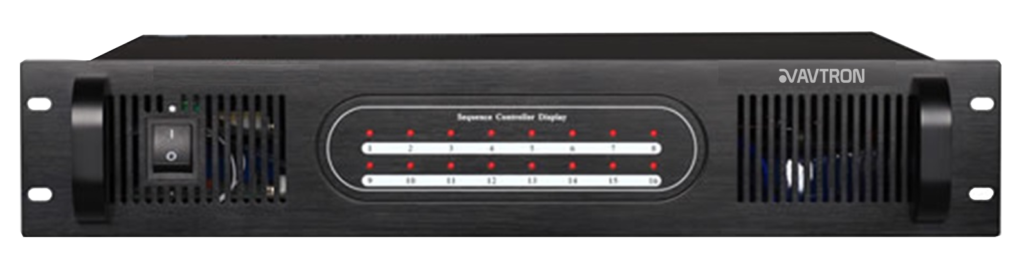

SKU: AP-D417
16 channel power sequencer bringing PA system components up in a controlled order at 0.4-0.5 second intervals, with 280W per channel and 2kW total capacity.
The AP-D417 turns a rack on in the right order. Powering up amplifiers, processors and sources simultaneously produces both an inrush current spike and an audible thump through the speakers; sequencing them 0.4 to 0.5 seconds apart avoids both.
Up to 16 components are switched in a defined order, with sources and processors brought up before amplifiers so the system never amplifies a settling signal.
Each channel supplies 280W with a total capacity of 2kW from a 220V AC 20A input. Indicators cover power, each of CH1-CH16, and the timer, so the sequence can be watched as it runs.
The 3U full-metal chassis measures 133 x 483 x 390mm at under 10kg, drawing under 30W, running from 200-240V AC with fuse protection and 24V DC.
| Channels | 16 Channels (CH1-CH16) |
|---|---|
| Input | AC 220V, 20A |
| Output | 280W / Channel |
| Sequence Interval | 0.4S-0.5s |
| Power Heading | 2kW total capacity |
| Check Cycle | N.A |
| Alarm Active out | N.A |
| Channel Switching Cap | N.A |
| Adjacent Zones Range | N.A |
| Controls | Power On/Off switch |
| Indicators | Power, CH1-CH16, TIMER |
| Power Input | 200-240V AC, Fuse Protection, 24V DC |
| Power Consumption | <30W |
| Mount | 3U 19" Rack Mount, Table Top |
| Enclosure & Color | Full Metal, Black |
| Dimension & Weight | 133(H) x 483(W) x 390(D) mm, <10Kg |
