SKU: AP-D407

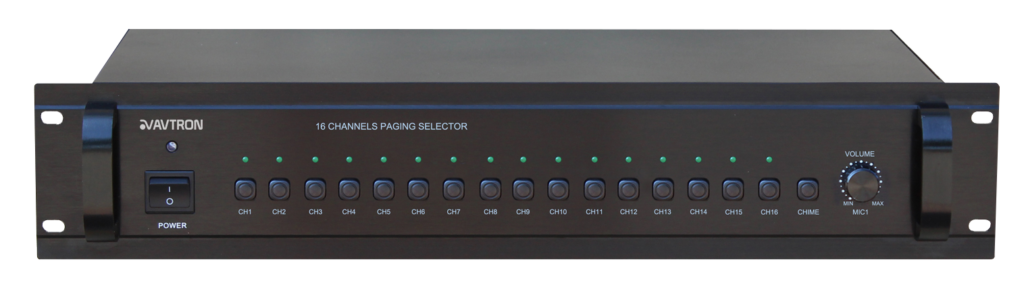

Rack-mount 16 zone paging selector with four priority levels, cascading to eight units for larger systems, with a built-in message recorder holding two messages.
The AP-D407 routes paging to the right part of a building. Sixteen zones are selectable at the unit, and up to eight units cascade for sites that outgrow a single selector.
Four priority levels decide what happens when several sources want the system at once — an emergency trigger, a management page and background music cannot all win, and the priority structure settles it without an operator.
A built-in IC recorder stores two messages up to 180 seconds total, played on a 0V short signal, so routine or emergency announcements can be triggered without anyone at a microphone.
Microphone input is 600 ohm 5mV unbalanced with a 10k ohm 330mV line input. Siren and recorded message output runs 100Hz-3.4kHz ±3dB while microphone and audio inputs cover 60Hz-16kHz. Signal-to-noise is better than 70dB, distortion under 0.1% at 1kHz. The 2U full-metal chassis runs on 200-240V AC and 24V DC at under 15W.
| MIC Input | 600ohms, 5mV, Unbalanced |
|---|---|
| Line Input | 10k ohms, 330mV, unbalanced |
| Output | 10K Ohms, 330mV(0dB), Siren or Recorded Message |
| Frequency Response | Alarm siren or record:100 Hz ~ 3.4k Hz (+ / - 3 dB), MIC input or audio input:60 Hz ~ 16k Hz (+ / - 3 dB) |
| Recorder | Built in IC, 2x Message, Max. 180 seconds |
| ADC/DAC Sampling frequency | 8KHz, 5-bit; 60 seconds |
| S/N Ratio | > 70dB |
| Alarm Activation | OV Short Signal |
| THD | Less than 0.1% at 1KHz |
| Tone Controls | Play/rec controls, volume, rec level and power |
| Power Input | 200-240V AC, Fuse Protection, 24V DC |
| Power Consumption | <15W |
| Mount | 2U 19" Rack Mount, Table Top |
| Enclosure & Color | Full Metal, Black |
| Dimension & Weight | 89(H) x 483(W) x 366(D) mm, <7Kg Specifications PA Digital AP-D407 |
| MIC Input | 600ohms 5mV,unbalanced, phone jack |
| R MIC Input | 4 Input, 10K Ohms 10V , balanced, RJ45 |
| Line Input | 10K Ohms 330mV,unbalanced |
| PRIORITY IN | 16 channels, 0V short circuit signal |
| Line Out | 10k ohms 0.775V (0 dB), unbalanced |
| Priority Out | 16 channels, 0V short circuit signal |
| Frequency Response | 60Hz-16kHz (+/- 3dB) |
| S/N Ratio | Better than 70dB |
| THD | Less than0.01%at1kHz |
| Zone Controls | 16 zones, Zone 1 to 16, expandable to 160 zones |
| Muting Function | MIC1 overrides other input signals except LINE 1 |
| Controls | 2 Volume buttons, 16Ch selectors, 1 x Power control all on/all off, Address setting, Tone switch, MIC volume, CHIME volume, Power switch |
| Indicators | 16 Zone LEDs, Power LED |
| Power Input | 200-240V AC, Fuse Protection, 24V DC |
| Power Consumption | <15W |
| Mount | 2U 19" Rack Mount, Table Top |
| Enclosure & Color | Full Metal, Black |
| Dimension & Weight | 89(H) x 483(W) x 366(D) mm, <7Kg |
