SKU: AP-PCD212

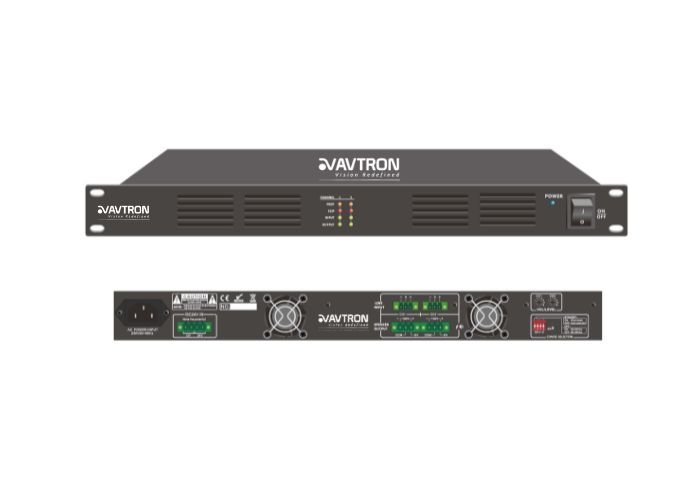

The AP-PCD212 puts two independent 120W channels in a single rack unit, which is the efficient answer when a site needs two zones amplified from one position rather than two separate boxes.
Each channel has its own balanced line input, gain control and speaker outputs for 8 ohm and 100V, so the two zones can differ in both level and speaker infrastructure.
Class D switching operation keeps heat and consumption low enough for 1U packaging, and auto standby trims idle draw further.
Per-channel indicators report protection, clip, input and output, with short circuit, overload, high temperature, clip and DC protection on both channels. Power is 230V AC with 24V DC backup.
| Amplifier | Class-D Power Dual Channel |
|---|---|
| Rated Power Output | 2x120W |
| Speaker Out | 100V, 4 ~ 16Ω |
| Frequency response | L/H Cut OFF 20Hz-20KHz ( + 1/-2dB) L/H Cut ON 70Hz-10KHz ( + 1/-3dB) |
| S/N Ratio | >80dB |
| Crosstalk | >60dB, 1KHz, max. output |
| Input Impedance | 10K Ohms |
| Input | 0.775V, Balanced Phoenix Connector |
| THD | <0.1% (1KHz/-3dBv, 100W) |
| Protection | Short Circuit, Overload, High Temp, Clip, DC Protection |
| Power Input | 220V AC Input, 50 ~ 60Hz (115V & 24V-DC Input Optional) |
| Power Consumption | <320W |
| Working temp. & Humidity | 0 ℃ ~ 40 ℃, ≤ 95%RH (Not Condensing) |
| Mount | 19" Rack Mount 1U, Table Top |
| Enclosure & Color | Full Metal, Black |
| Dimension & Weight | 44(H) x 485(W) x 420(D)mm, <8Kg |
