SKU: AP-N9E30W
Two-channel 30W network wall amplifier with a local microphone input, relay output and 24V DC supply out, keeping audio delay under 30ms across LAN or WAN.

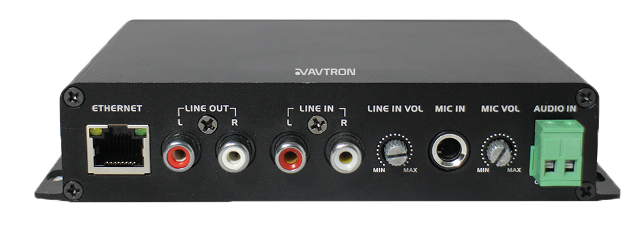

The AP-N9E30W is the larger of the AVTRON mini wall amplifiers, doubling output to 2 x 30W and adding local facilities that matter in a real installation.
An analogue microphone input with its own volume control allows announcements to be made at the zone itself, independent of the network — useful in a reception, a workshop office or a school staff room. A relay output and a 24V DC supply output drive local hardware such as strobes or override devices.
Audio delay is held under 30ms, noticeably tighter than typical network audio, which keeps adjacent zones in step when they can be heard from the same position. Signal-to-noise is 90dB or better across 20Hz-22kHz, decoding ADPCM, MP3, MP2, PCM, WMA and WAV at 8-320kbps.
The full-metal black chassis measures 35 x 150 x 132mm at under 0.7kg, wall-mounted or on a table, running from 24V DC.
| Power out | 2 x 30W |
|---|---|
| Audio output | 1 Line out, 1 DC 24V out, 1 Relay out |
| Volume control | Volume control Line & MIC in |
| Network protocol | TCP,UDP,IGMP,ICMP,ARP, DNS |
| Network speed | N.A |
| Audio compression | ADPCM,MP3, MP2, PCM, WMA,WAV |
| Audio bitrate | 8kHz-44.1kHz, 16bit, 8kbps ~ 320kbps |
| Audio delay | <30 ms |
| S/N ratio | ≥90dB, 20Hz-22KHz |
| Frequency | N.A |
| Power Input | 24V DC |
| Mount | Table top, Wall Mount |
| Working temp. & Humidity | -0 ℃ ~ 50 ℃, ≤ 90%RH (Not Condensing) |
| Enclosure & Color | Full Metal, Black |
| Dimension & Weight | 35(H) x 150(W) x 132(D) mm, <0.7Kg |
