SKU: AP-PCD235

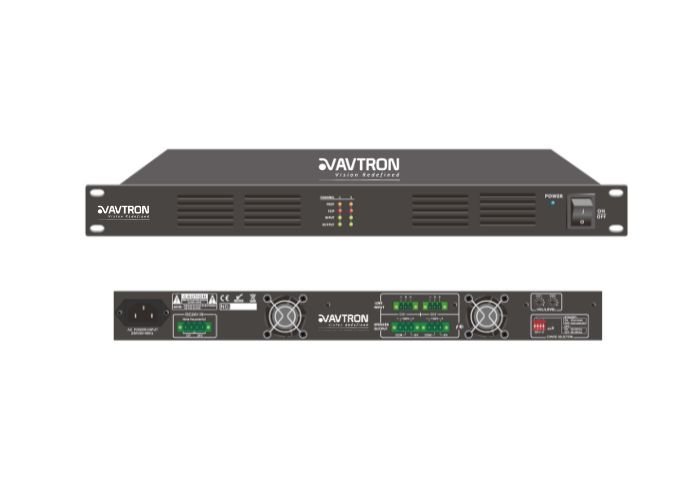

The AP-PCD235 delivers 350W on each of two channels from a single rack unit, serving two large zones — or one large zone in a bridged configuration — without the rack space two separate amplifiers would need.
Advanced switching power technology keeps consumption down while maintaining strong output, and the 1U height suits installations where both space and heat management are tight.
Each channel supports 8 ohm and 100V speaker outputs and has a balanced Phoenix line input with independent gain control. A per-channel high-cut filter allows precise tuning for speech or music.
Auto standby conserves energy during inactivity, and real-time LED indicators for protection, clip, input and output are provided on both channels for at-a-glance monitoring.
| Amplifier | Class-D Power Dual Channel |
|---|---|
| Rated Power Output | 2x350W |
| Speaker Out | 100V, 4 ~ 16Ω |
| Frequency response | L/H Cut OFF 20Hz-20KHz ( + 1/-2dB) L/H Cut ON 70Hz-10KHz ( + 1/-3dB) |
| S/N Ratio | >80dB |
| Crosstalk | >60dB, 1KHz, max. output |
| Input Impedance | 10K Ohms |
| Input | 0.775V, Balanced Phoenix Connector |
| THD | <0.1% (1KHz/-3dBv, 100W) |
| Protection | Short Circuit, Overload, High Temp, Clip, DC Protection |
| Power Input | 220V AC Input, 50 ~ 60Hz (115V & 24V-DC Input Optional) |
| Power Consumption | <810W |
| Working temp. & Humidity | 0 ℃ ~ 40 ℃, ≤ 95%RH (Not Condensing) |
| Mount | 19" Rack Mount 1U, Table Top |
| Enclosure & Color | Full Metal, Black |
| Dimension & Weight | 44(H) x 485(W) x 420(D)mm, <9Kg |
