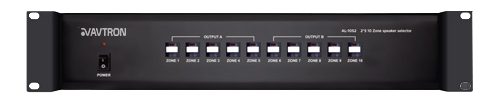

SKU: AP-Z219
Ten zone speaker selector split into two groups of five with independent audio sources, or operated as a single ten zone selector, with two high-power amplifier inputs.
The AP-Z219 gives a mid-sized site two independent five-zone systems in one rack unit — or one ten-zone system, depending on how it is configured.
Two amplifier inputs feed the two groups, so background music can run in five zones while a second amplifier drives announcements or a different programme in the other five. Where a site does not need that split, the unit runs as a straightforward ten zone selector from a single source.
That flexibility matters in buildings whose use changes — a venue that operates as one space some days and as separate rooms on others.
Inputs take two programme channels at 100V or 70V, handling 150W per channel with a total capacity of 1.5kW. The 2U full-metal chassis measures 89 x 483 x 366mm at under 8kg, running from 200-240V AC with fuse protection at under 20W.
| MIC Input | N.A |
|---|---|
| AUX Input | N.A |
| EMC Input | N.A |
| Monitor Channel | N.A |
| Input | 2 program, 100V/70V Audio Signal |
| Audible Monitor | N.A |
| Indicator | N.A |
| Zone Speaker Out | 10 Zone, Divided in 2 groups X 5 Zone each |
| Power Handling | 150W/per channel, Total Capacity 1.5KW |
| Priority Contact Input | N.A |
| Alarm Output | N.A |
| Output | N.A |
| Muting Function | N.A |
| Frequency Response | N.A |
| S/N Ratio | N.A |
| THD | N.A |
| Tone Controls | N.A |
| Control | 16 Zone Push button, 1 Power Switch |
| Power Input | 200-240V AC, Fuse Protection |
| Power Consumption | <20W |
| Mount | 2U 19" Rack Mount, Table Top |
| Enclosure & Color | Full Metal, Black |
| Dimension & Weight | 89(H) x 483(W) x 366(D) mm, <8Kg |
