SKU: AP-PCD250

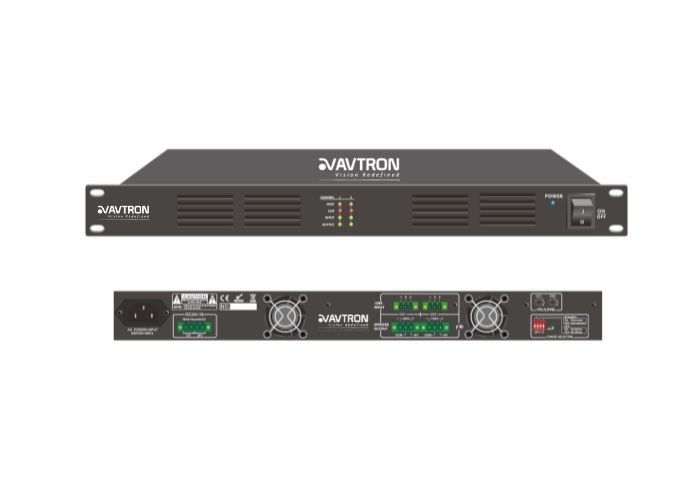

The AP-PCD250 is the largest two channel amplifier in AVTRON's Class D range, delivering 500W per channel for professional systems where output and reliability both matter.
Modern switching power technology provides that output while keeping consumption low, and the 1U height makes it viable in compact 19-inch installations where space and heat management are critical.
Each channel supports 8 ohm and 100V speaker outputs with a balanced Phoenix line input and separate gain control for accurate level setting. Both channels include a high-cut filter for audio shaping.
Auto standby reduces power use when the system is idle, and separate LED indicators per channel cover protection, clip, input and output for monitoring and system safety.
| Amplifier | Class-D Power Dual Channel |
|---|---|
| Rated Power Output | 2x500W |
| Speaker Out | 100V, 4 ~ 16Ω |
| Frequency response | L/H Cut OFF 20Hz-20KHz ( + 1/-2dB) L/H Cut ON 70Hz-10KHz ( + 1/-3dB) |
| S/N Ratio | >80dB |
| Crosstalk | >60dB, 1KHz, max. output |
| Input Impedance | 10K Ohms |
| Input | 0.775V, Balanced Phoenix Connector |
| THD | <0.1% (1KHz/-3dBv, 100W) |
| Protection | Short Circuit, Overload, High Temp, Clip, DC Protection |
| Power Input | 220V AC Input, 50 ~ 60Hz (115V & 24V-DC Input Optional) |
| Power Consumption | <1100W |
| Working temp. & Humidity | 0 ℃ ~ 40 ℃, ≤ 95%RH (Not Condensing) |
| Mount | 19" Rack Mount 1U, Table Top |
| Enclosure & Color | Full Metal, Black |
| Dimension & Weight | 44(H) x 485(W) x 420(D)mm, <10Kg |
