SKU: AP-P25D
IP66-rated dual direction projection speaker with two 6.5-inch full-range woofers, 92dB sensitivity and taps at 20W, 10W and 5W in a full metal enclosure.

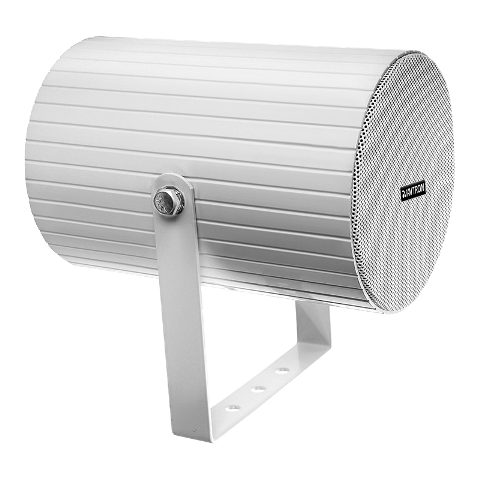

The AP-P25D is the highest-output projection speaker in AVTRON's range, pairing two 6.5-inch full-range woofers firing in opposite directions from a single housing.
It covers both directions of a long space — a covered walkway, a station platform, a market arcade — from one mounting point, with 92dB sensitivity and maximum output to 104dB.
Response runs 110Hz-15kHz, wide enough for background music as well as announcements, which distinguishes projection speakers from the horns often used in the same positions.
Taps are 20W, 10W and 5W on 70V or 100V line. The full metal enclosure with grille is IP66 rated with a waterproof cable tail gland, measuring 170mm diameter x 250mm at under 3.5kg in white.
| Rated power output | 20W/10W/5W |
|---|---|
| Line input | 70V/100V LMT |
| SPL | 92dB at 1W/1M, Max. up to 104dB |
| Freq. response | 110Hz-15KHz |
| Speaker type | 6.5"x 2 full range woofer |
| Installation | Wall and Ceiling |
| Mount | Built in wall mount bracket |
| Enclosure | Full Metal Enclosure included grille |
| IP protection | IP66 |
| Connector | Waterproof Cable tail gland |
| Color | White |
| Product dimension | 170(D) x 250(H)mm |
| Weight | <3.5Kg |
