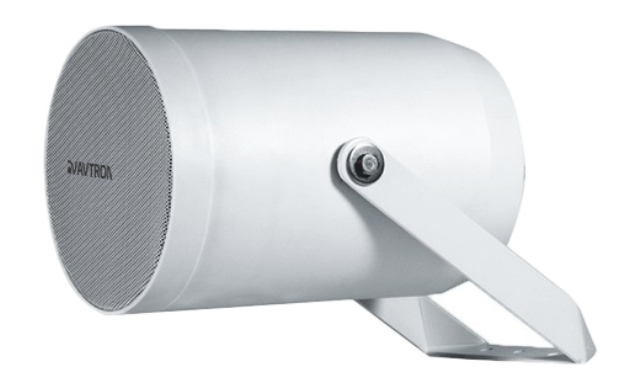

SKU: AP-P26
Lightweight IP66-rated 20W projection speaker with a 6.5-inch PP cone woofer in an ABS enclosure with metal grille, at under 1.4kg with taps at 20W, 10W and 5W.
The AP-P26 is the lightweight option among AVTRON's 20W projection speakers, using an ABS enclosure with metal grille rather than full metal construction.
At under 1.4kg it weighs less than half the metal-bodied AP-P25, which changes what it can be mounted to — light canopies, timber structures and existing brackets that would not take a 3kg speaker.
A 6.5-inch polypropylene cone woofer covers 150Hz-17kHz with 92dB sensitivity and maximum output to 101dB, keeping speech clear in single-direction outdoor coverage.
Taps are 20W, 10W and 5W on 70V or 100V line, with IP66 protection and a waterproof cable tail gland. It measures 180mm diameter x 250mm in white with a built-in wall bracket for wall or ceiling mounting.
| Rated power output | 20W/10W/5W |
|---|---|
| Line input | 70V/100V LMT |
| SPL | 92dB at 1W/1M, Max. up to 101dB |
| Freq. response | 150Hz-17KHz |
| Speaker type | 6.5" full range PP cone woofer |
| Installation | Wall and Ceiling |
| Mount | Built in wall mount bracket |
| Enclosure | ABS Plastic, Metal Grille |
| IP protection | IP66 |
| Connector | Waterproof Cable tail gland |
| Color | White |
| Product dimension | 180(D) x 250(H)mm |
| Weight | <1.40Kg |
