SKU: AP-PCD124
The AP-PCD124 doubles the output of the 120W model in the same 1U footprint, which is the point of Class D in installed audio: more power per rack unit, less heat to remove.

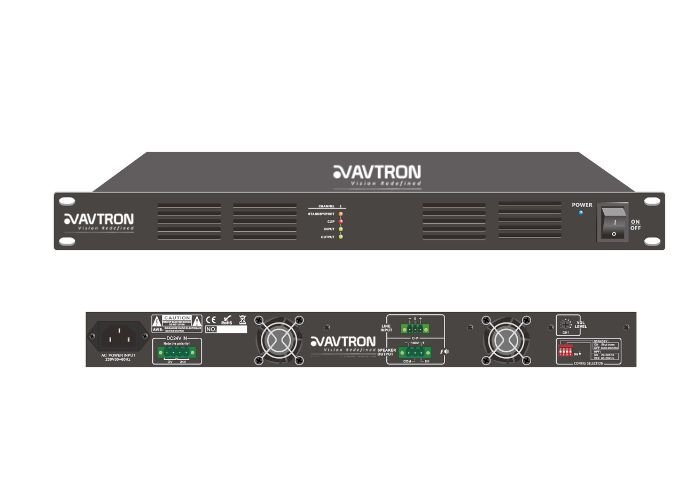

Protection is comprehensive — short circuit, overload, high temperature, clip and DC — with separate indicators for protection, clip, input and output so a fault is diagnosed from the front panel rather than by substitution.
Separate 8 ohm and 100V speaker outputs cover low-impedance and distributed line installations. The balanced line input uses a Phoenix connector with gain level control, and the switchable high-cut filter trims high frequencies where speech clarity matters more than bandwidth.
Auto standby reduces consumption when the system is idle. Power is 230V AC with 24V DC backup for continued operation through a mains failure.
| Amplifier | Class-D Power Single Channel |
|---|---|
| Rated Power Output | 240W |
| Speaker Out | 100V, 4 ~ 16Ω |
| Frequency response | L/H Cut OFF 20Hz-20KHz ( + 1/-2dB) L/H Cut ON 70Hz-10KHz ( + 1/-3dB) |
| S/N Ratio | >80dB |
| Crosstalk | >60dB, 1KHz, max. output |
| Input Impedance | 10K Ohms, Sensitivity 0dBU(0.775V) |
| Input | Balanced Phoenix Connector |
| THD | <0.1% (1KHz/-3dBv, 100W) |
| Protection | Short Circuit, Overload, High Temp, Clip, DC Protection |
| Power Input | 220V AC Input, 50 ~ 60Hz (115V & 24V-DC Input Optional) |
| Power Consumption | 310W |
| Working temp. & Humidity | -5 ℃ ~ 40 ℃, ≤ 95%RH (Not condensing) |
| Mount | 19" Rack Mount 1U, Table Top |
| Enclosure & Color | Full Metal, Black |
| Dimension & Weight | 44(H) x 485(W) x 420(D)mm, <5Kg |
