SKU: AP-IP603POE

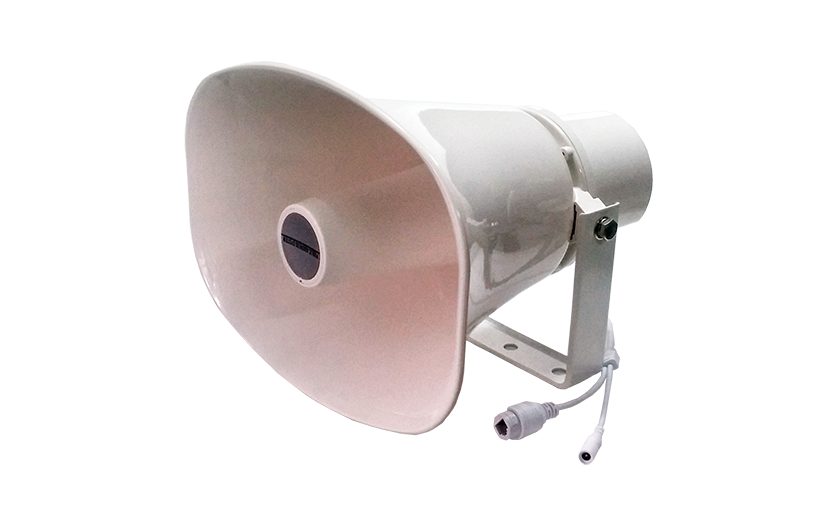

Outdoor all-in-one IP horn speaker with streaming, decoder, amplifier and driver in one housing, running on PoE or 12V DC with battery backup input.
The AP-IP603POE puts IP streaming, decoding, amplification and the driver itself into a single outdoor housing, switchable between 15W and 30W output to match the coverage a position needs.
It runs on 802.3af or 802.3at PoE, or on 12V DC — and the DC input doubles as a battery backup connection, so the horn keeps working through a mains failure. On a site where the PA system is also the emergency notification path, that is the difference between a working system and a silent one.
Audio is MP3 and MP2 at CD-level 16-bit quality, 8-48kHz sampling and 8-512kbps, with group broadcast handled over IGMP.
Sensitivity is 92dB at 1W/1M across 100Hz-18kHz ±3dB with 0.1% distortion and 85dB signal-to-noise. The white ABS housing is 285mm diameter x 205mm at 2.4kg, supplied with a stainless U-bracket and rated -30°C to 55°C.
| Power | Output 15 Watt & 30W Watt (1KHz@-3dB) |
|---|---|
| Built-in Amplifier | Class-D technology |
| Network | I/F 10/100Mbps |
| Protocol | ARP, TCP/IP, UDP, ICMP & IGMP (Group Broadcast) |
| Audio Format | MP3/MP2 |
| Audio Quality | 16digit stereo CD level |
| Sampling Rate | 8K~48K |
| Bit Rate | 8K~512Kbps |
| Sensitivity | 92dB/1W/1M |
| S/N Ratio | 85dB |
| THD | 0.1% |
| Frequency Response | 100-18KHz(±3dB) |
| Connector | One RJ45 port for existing LAN/WAN & internet, One DC12V battery backup input |
| Power Input | POE 802.3af or POE 802.3at & DC 12V |
| Operation Temp | -30°C to +55°C |
| Dimension | Ø285×205mm |
| Bracket | Stainless mounting U-shaped bracket is supplied |
| Material | ABS enclosure in white |
| Weight | 2.4kg |
