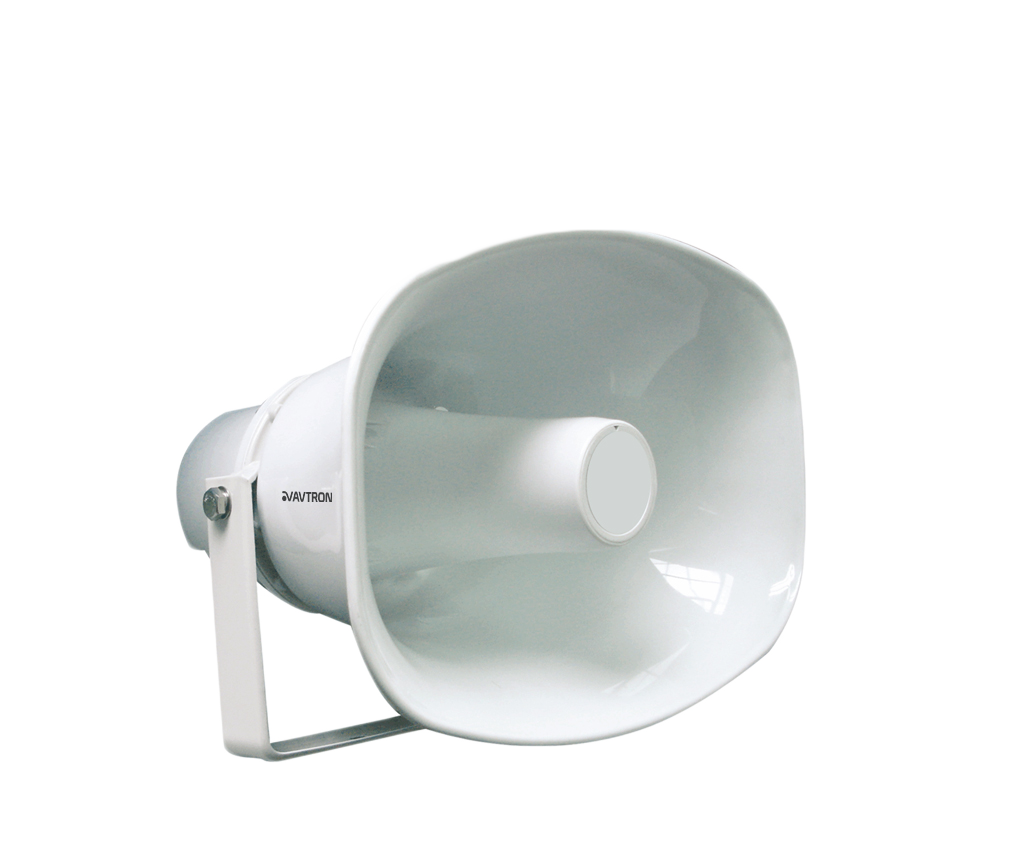

AVTRON 30W IP66 Outdoor Horn Speaker – AP-W47

Name: AVTRON 30W IP66 Outdoor Horn Speaker – AP-W47
Brand: AVTRON
SKU: AP-W47

SKU: AP-W47

The AP-W47 is a voice-projection horn for outdoor public address, aimed at long throw and speech clarity rather than musical range.

Selectable 30W and 15W taps on a 100V or 70V line let one model cover both a large open area and a smaller courtyard without over-driving the nearer position.

The IP66 rating and ABS enclosure with stainless steel bracket handle sustained weather exposure, and connection is made through a speaker cable tail so there is no exposed terminal block to corrode.

The white finish blends against light building frontages, and the supplied stainless bracket makes installation quick. It suits schools, offices, hotels and airports needing dependable outdoor announcements.

🔒

Trade Account Required
Log in to see trade pricing and add to cart — or request a quote, no account needed.

Public Address (PA) system paging horn speaker Outdoor horn loudspeaker with 100V/70V transformer Ideal for outdoor paging and speech use in school, office, hotel and airport Superior long distance voice speech clear & crystal delivery Multiple power taps of 30-15W Waterproof level of IP66 Line input 100V or 70V by speaker cable tail ABS enclosure and stainless metal bracket in white Quick installation by supplied stainless mounting bracket
Public Address (PA) system paging horn speaker
Outdoor horn loudspeaker with 100V/70V transformer
Ideal for outdoor paging and speech use in school, office, hotel and airport
Superior long distance voice speech clear & crystal delivery
Multiple power taps of 30-15W
Waterproof level of IP66
Line input 100V or 70V by speaker cable tail
ABS enclosure and stainless metal bracket in white
Quick installation by supplied stainless mounting bracket
Public Address (PA) system paging horn speaker Outdoor horn loudspeaker with 100V/70V transformer 30W Outdoor Horn Speaker Features : Public Address (PA) system paging horn speaker Outdoor horn loudspeaker with 100V/70V transformer Ideal for outdoor paging and speech use in school, office, hotel and airport Superior long distance voice speech clear & crystal delivery Multiple power taps of 30-15W Waterproof level of IP66 Line input 100V or 70V by speaker cable tail ABS enclosure and stainless metal bracket in white Quick installation by supplied stainless mounting bracket The AP-W47 30W Outdoor Horn Speaker is designed for powerful and clear voice projection in outdoor environments. Ideal for public address systems in schools, offices, hotels, and airports, this horn speaker features a 100V/70V line input for easy integration. With multiple power taps (30W/15W), it delivers superior speech clarity even over long distances. Constructed with a durable ABS enclosure and stainless steel bracket, it offers quick installation and excellent weather resistance with an IP66 waterproof rating. Whether for paging or announcements, the AP-W47 ensures reliable and crystal-clear sound delivery outdoors. Read More
30W Outdoor Horn Speaker Features : Public Address (PA) system paging horn speaker Outdoor horn loudspeaker with 100V/70V transformer Ideal for outdoor paging and speech use in school, office, hotel and airport Superior long distance voice speech clear & crystal delivery Multiple power taps of 30-15W Waterproof level of IP66 Line input 100V or 70V by speaker cable tail ABS enclosure and stainless metal bracket in white Quick installation by supplied stainless mounting bracket The AP-W47 30W Outdoor Horn Speaker is designed for powerful and clear voice projection in outdoor environments. Ideal for public address systems in schools, offices, hotels, and airports, this horn speaker features a 100V/70V line input for easy integration. With multiple power taps (30W/15W), it delivers superior speech clarity even over long distances. Constructed with a durable ABS enclosure and stainless steel bracket, it offers quick installation and excellent weather resistance with an IP66 waterproof rating. Whether for paging or announcements, the AP-W47 ensures reliable and crystal-clear sound delivery outdoors. Read More

Specifications

Rated Power Output	RMS 15W/7.5W/4W/2W
Line Input	70V/100V LMT
SPL	105dB at 1W/1M, Max. 110dB
Dispersion angle	130 Degree
Freq. Response	400Hz-8KHz
Product Dimension	220(D) x 235(W)mm
Installation	Wall, Pole, Ceiling
Mount	Stainless steel Mounting Bracket
Enclosure	ABS
IP Protection	IP66
Color	White
Weight	<2Kg

Download Datasheet (PDF)
