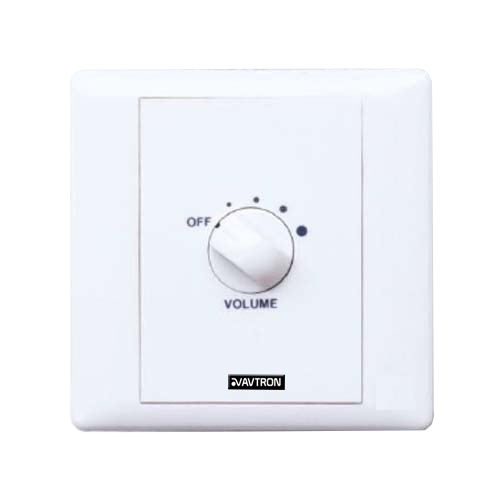

SKU: AP-VC30F
30W five-step volume controller with a 24V DC override relay that returns the zone to full level for priority and emergency announcements.
The AP-VC30F pairs mid-power zone control with the override behaviour a paging system needs. A 24V DC relay lifts the attenuator on a priority signal so the announcement reaches the room at full level no matter how the control was left.
Day to day it works as a standard five-step controller for 100V or 70V line, dropping 3dB per step to 33dB total, with a full-off position for when a room needs quiet.
Use it in classrooms, offices and back-of-house areas that sit inside a paging or evacuation zone. The white UV-protected ABS plate is 86 x 86mm, 60mm deep, surface or in-wall, under 200g.
| Power Rating | 30W |
|---|---|
| 24V Relay Override | Yes |
| Line Input | 100V or 70V |
| Volume Step | 5 steps Resistive, Mono |
| Attenuation Per Step | 3dB |
| Total Attenuation | 33dB |
| Enclosure | UV-protected ABS |
| Color | White |
| Mounting Way | Surface Mount or in-Wall Mount |
| Product Depth | 60mm |
| Outer Plate Dimension | 86(W)×86(D)mm |
| Weight | <200g |
