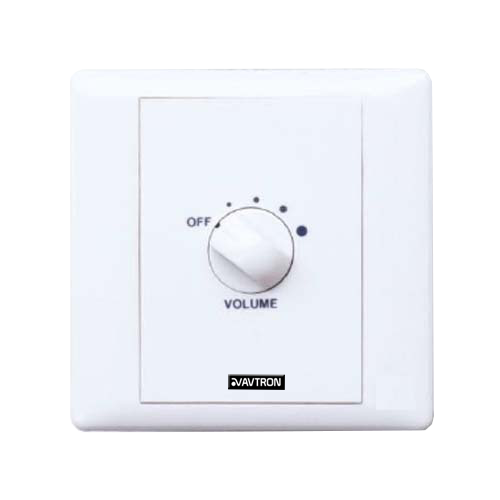

SKU: AP-VC30
30W five-step volume controller for 100V and 70V line systems, offering 3dB per step to 33dB total attenuation from a white UV-protected ABS wall plate.
The AP-VC30 handles the mid-sized zone: a classroom, a meeting room, a small retail area running a handful of ceiling speakers. At 30W it is matched to that load without paying for headroom the zone will never use.
Five resistive steps at 3dB each give 33dB of total attenuation plus a full-off position, so occupants can set a working level or shut the zone down entirely. The built-in transformer takes 100V or 70V line directly.
The 86 x 86mm UV-protected ABS plate sits surface-mounted or in a standard wall box at 60mm depth, weighing under 100g.
| Color | White |
|---|---|
| Power Rating | 30W |
| Line Input | 100V or 70V |
| Volume Step | 5 steps Resistive, Mono |
| Attenuation Per Step | 3dB |
| Total Attenuation | 33dB |
| Enclosure | UV-protected ABS |
| Color | White |
| Mounting Way | Surface Mount or in-Wall Mount |
| Product Depth | 60mm |
| Outer Plate Dimension | 86(W)×86(D)mm |
| Weight | <100g |
