SKU: AP-PCD135

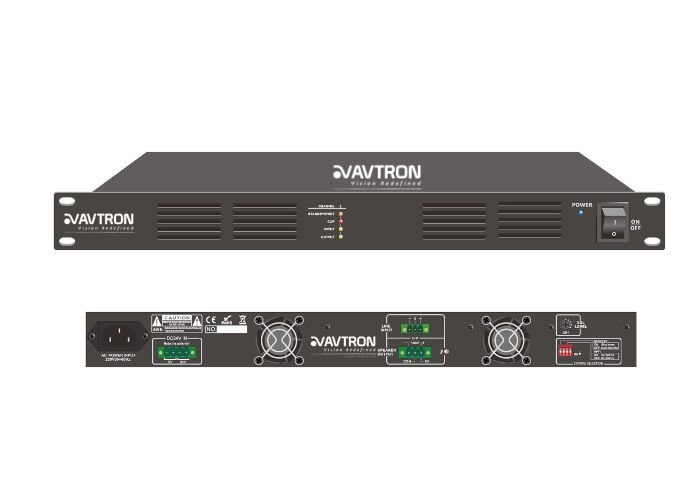

The AP-PCD135 delivers 350W from a single 1U chassis, aimed at larger zones on distributed systems — a warehouse aisle group, a sports hall, an outdoor horn array.
Class D switching operation keeps consumption and heat output down, which matters as much for the surrounding rack equipment as for the amplifier itself.
Separate 8 ohm and 100V speaker outputs handle both low-impedance and line-distributed loads. The balanced Phoenix line input includes gain level control, and the output high-cut filter can be switched in to favour intelligibility.
Auto standby is available to cut idle consumption, and separate indicators cover protection, clip, input and output. Protection spans short circuit, overload, high temperature, clip and DC, with power from 230V AC and 24V DC.
| Amplifier | Class-D Power Single Channel |
|---|---|
| Rated Power Output | 350W |
| Speaker Out | 100V, 4 ~ 16Ω |
| Frequency response | L/H Cut OFF 20Hz-20KHz ( + 1/-2dB) L/H Cut ON 70Hz-10KHz ( + 1/-3dB) |
| S/N Ratio | >80dB |
| Crosstalk | >60dB, 1KHz, max. output |
| Input Impedance | 10K Ohms, Sensitivity 0dBU(0.775V) |
| Input | Balanced Phoenix Connector |
| THD | <0.1% (1KHz/-3dBv, 100W) |
| Protection | Short Circuit, Overload, High Temp, Clip, DC Protection |
| Power Input | 220V AC Input, 50 ~ 60Hz (115V & 24V-DC Input Optional) |
| Power Consumption | 420W |
| Working temp. & Humidity | -5 ℃ ~ 40 ℃, ≤ 95%RH (Not condensing) |
| Mount | 19" Rack Mount 1U, Table Top |
| Enclosure & Color | Full Metal, Black |
| Dimension & Weight | 44(H) x 485(W) x 420(D)mm, <7Kg |
