SKU: AP-N9EC35

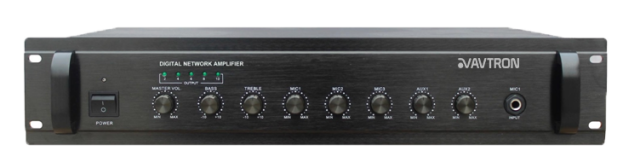

350W network mixer power amplifier with 100V, 70V and 8 ohm speaker outputs, on-board IP audio decoding, three microphone inputs and LCD status, in 2U.
The AP-N9EC35 delivers 350W for the larger zones in an AP-N9EC-based system, while keeping the same front panel, input set and network behaviour as the rest of the series.
Standardising on one amplifier family across a site means spares, commissioning and staff training carry over between zones — a practical advantage on estates where amplifiers are added year by year.
Three microphone and two line inputs handle local audio, with 100V, 70V and 8 ohm speaker outputs. Network audio decodes on board with delay under 100ms, distortion at or under 0.3%, and signal-to-noise of 85dB or better across 20Hz-16kHz.
The 2U full-metal chassis measures 88 x 483 x 370mm at under 15kg, drawing 485W from a 200-240V 50-60Hz supply.
| Rated Power Out | 350W |
|---|---|
| Audio Input | 3 MIC in, 2 Line in |
| Audio Output | 1 Line out |
| Speaker out | 100V/70V, 8 Ohms |
| Display Screen | LCD type 144x32 |
| Network protocol | TCP,UDP,IGMP,DNS |
| Network Port | RJ-45(10/100Mbps) |
| Audio Compression | ADPCM,MP3, MP2, PCM |
| Audio bitrate | 8kHz～44.1kHz |
| Audio Delay | <100 ms (millisecond) |
| S/N Ratio | ≥85dB |
| Frequency response | 20Hz-16KHz |
| THD | ≤0.3% |
| Power Input | 200-240V AC, 50-60Hz |
| Power Consumption | 485W |
| Working Temp. & Humidity | -5 ℃ ~ 40 ℃, ≤ 90%RH (Not Condensing) |
| Mount | 19" Rack mount, Table top |
| Enclosure & Color | Full metal, Black |
| Dimension & Weight | 88(H) x 483(W) x 370(D) mm, <15Kg |
