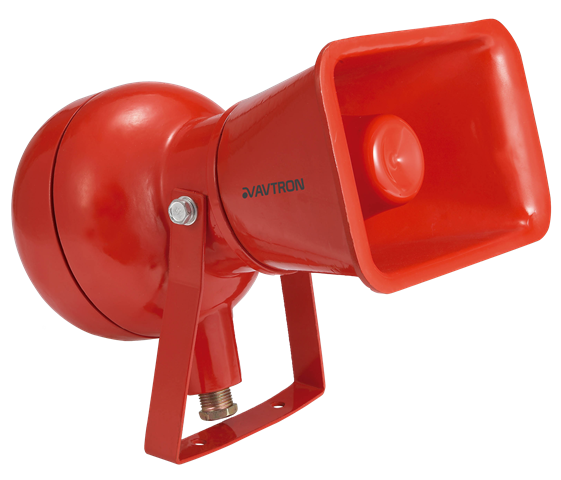

SKU: AP-H135EX
35W RMS explosion proof horn speaker with 50W maximum handling, EN54 and EXd compliant for Zone 0, 1 and 2 atmospheres, in a stainless steel enclosure.
The AP-H135EX is the highest-output explosion proof horn in AVTRON's range at 35W RMS with 50W maximum handling, for the largest hazardous areas.
Zone 0, 1 and 2 certification covers explosive gas mixture atmospheres across all three risk classifications, and EN54 compliance allows its use in voice evacuation systems.
Sensitivity is 101dB at 1W/1M with maximum output to 105dB across a 250Hz-8kHz response, concentrating energy in the speech band where intelligibility over plant noise is decided.
Line input is 70V or 100V. The stainless steel enclosure measures 140 x 290 x 205mm at under 5.5kg with a dust cover, mounting to wall, pole, ceiling or shade structure on a U-shaped bracket.
| Rated Power Output | 35W RMS and 50W Max |
|---|---|
| Line Input | 70V/100V LMT |
| SPL | 101dB at 1W/1M, Max up to 105dB |
| Speaker type | - |
| Freq. Response | 250Hz-8KHz |
| Product Dimension | 140(D)mm x 290mm(H) x 205mm(W) |
| EVAC Compliant | - |
| Installation | Wall, Pole, Ceiling, Shade |
| Mount | U-Shaped bracket |
| Enclosure | Stainless steel |
| Back Cover | - |
| Dust cover | Yes |
| Color | - |
| Weight | <5.5Kg |
