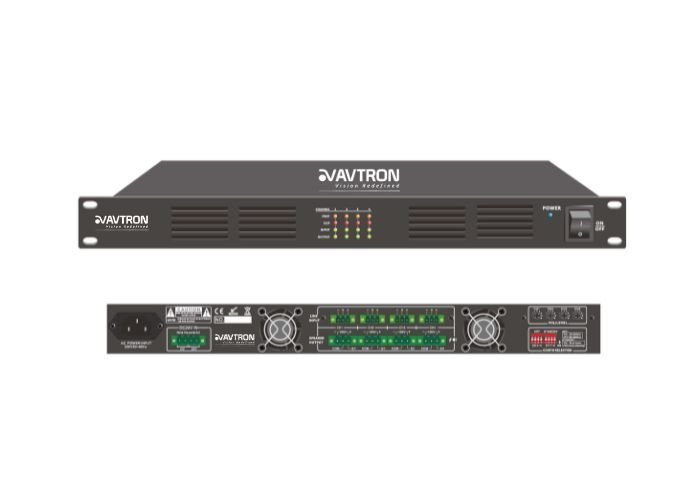

SKU: AP-PCD412
The AP-PCD412 fits four independent 120W channels into one rack unit, engineered for multi-zone systems where four areas need separate amplification but rack space does not allow four boxes.
Each of the four channels supports 8 ohm and 100V speaker outputs with a balanced Phoenix line input, independent gain control and its own high-cut filter, so the zones can be tuned individually rather than sharing one setting.
Advanced switching power technology delivers clean output at minimal consumption, keeping the slim 1U format practical in space-constrained environments.
Automatic standby reduces energy use during idle times, and individual indicators per channel cover protection, clip, input and output.
| Amplifier | Class-D Power Dual Channel |
|---|---|
| Rated Power Output | 4x120W |
| Speaker Out | 100V, 4 ~ 16Ω |
| Frequency response | L/H Cut OFF 20Hz-20KHz ( + 1/-2dB) L/H Cut ON 70Hz-10KHz ( + 1/-3dB) |
| S/N Ratio | >80dB |
| Crosstalk | >60dB, 1KHz, max. output |
| Input Impedance | 10K Ohms |
| Input | 0.775V, Balanced phoenix connector |
| THD | <0.1% (1KHz/-3dBv, 100W) |
| Protection | Short circuit, Overload, High temp, Clip, DC protection |
| Power Input | 220V AC Input, 50 ~ 60Hz (115V & 24V-DC Input Optional) |
| Power Consumption | <320W |
| Working temp. & Humidity | 0 ℃ ~ 40 ℃, ≤ 95%RH (Not Condensing) |
| Mount | 19" Rack Mount 1U, Table Top |
| Enclosure & Color | Full Metal, Black |
| Dimension & Weight | 44(H) x 485(W) x 420(D)mm, <8Kg |
