SKU: AP-PCD424

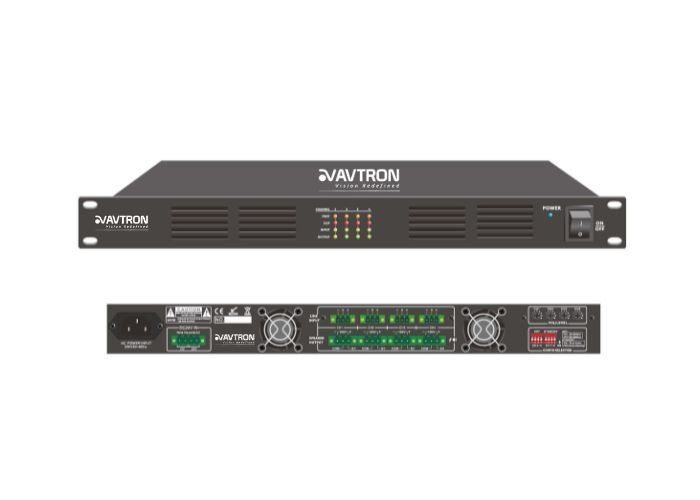

The AP-PCD424 delivers 240W on each of four channels from a 1U chassis — nearly a kilowatt of installed audio in one rack unit, aimed at commercial systems covering several substantial zones.
All four channels provide 8 ohm and 100V speaker outputs with balanced Phoenix line inputs, individual gain control and per-channel high-cut filters, so each zone is set independently.
Switching power technology keeps energy consumption low without compromising output or sound quality, which is what makes this channel density workable in a standard 19-inch rack.
Built-in auto standby conserves power during inactivity, and separate indicators on each channel cover protection, clip, input and output. Protection spans short circuit, overload, high temperature and clip, with a 230V AC and 24V DC supply.
| Amplifier | Class-D Power Dual Channel |
|---|---|
| Rated Power Output | 4x240W |
| Speaker Out | 100V, 4 ~ 16Ω |
| Frequency response | L/H Cut OFF 20Hz-20KHz ( + 1/-2dB) L/H Cut ON 70Hz-10KHz ( + 1/-3dB) |
| S/N Ratio | >80dB |
| Crosstalk | >60dB, 1KHz, max. output |
| Input Impedance | 10K Ohms |
| Input | 0.775V, Balanced phoenix connector |
| THD | <0.1% (1KHz/-3dBv, 100W) |
| Protection | Short circuit, Overload, High temp, Clip, DC protection |
| Power Input | 220V AC Input, 50 ~ 60Hz (115V & 24V-DC Input Optional) |
| Power Consumption | <560W |
| Working temp. & Humidity | 0 ℃ ~ 40 ℃, ≤ 95%RH (Not Condensing) |
| Mount | 19" Rack Mount 1U, Table Top |
| Enclosure & Color | Full Metal, Black |
| Dimension & Weight | 44(H) x 485(W) x 420(D)mm, <9Kg |
