SKU: AP-PCD435

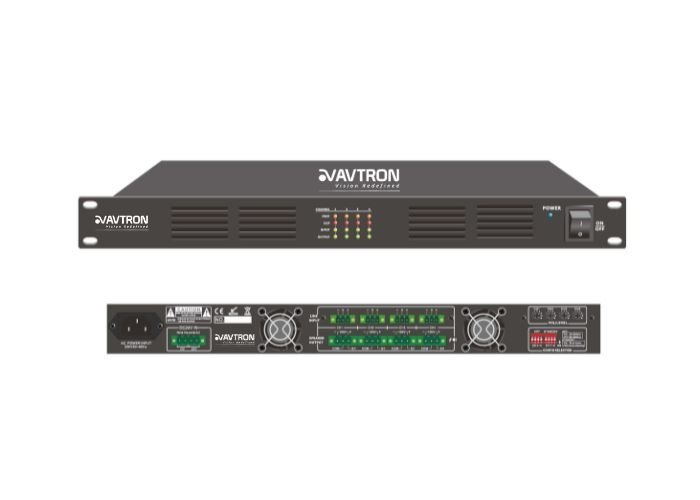

The AP-PCD435 delivers 350W on each of four channels from a single rack unit — 1.4kW of installed audio in 1U, for professional and commercial systems covering several large zones.
Advanced switching power technology provides that output at minimal consumption, which is what keeps a chassis this dense thermally viable in a standard 19-inch rack.
Each of the four channels supports 8 ohm and 100V speaker outputs, with a balanced line input on a Phoenix connector and independent gain control. High-cut filters are available on all channels to optimise performance for speech or music.
A built-in auto standby function reduces consumption during idle periods, and real-time indicators per channel cover protection, clip, input and output. Protection spans short circuit, overload, high temperature and clip, from a 230V AC and 24V DC supply.
| Amplifier | Class-D Power Dual Channel |
|---|---|
| Rated Power Output | 4x350W |
| Speaker Out | 100V, 4 ~ 16Ω |
| Frequency response | L/H Cut OFF 20Hz-20KHz ( + 1/-2dB) L/H Cut ON 70Hz-10KHz ( + 1/-3dB) |
| S/N Ratio | >80dB |
| Crosstalk | >60dB, 1KHz, max. output |
| Input Impedance | 10K Ohms |
| Input | 0.775V, Balanced phoenix connector |
| THD | <0.1% (1KHz/-3dBv, 100W) |
| Protection | Short circuit, Overload, High temp, Clip, DC protection |
| Power Input | 220V AC Input, 50 ~ 60Hz (115V & 24V-DC Input Optional) |
| Power Consumption | <810W |
| Working temp. & Humidity | 0 ℃ ~ 40 ℃, ≤ 95%RH (Not Condensing) |
| Mount | 19" Rack Mount 1U, Table Top |
| Enclosure & Color | Full Metal, Black |
| Dimension & Weight | 44(H) x 485(W) x 420(D)mm, <9Kg |
