SKU: AP-C12

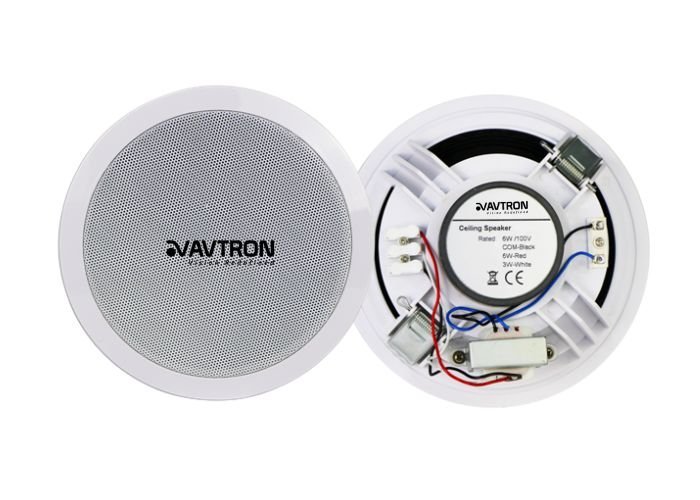

Compact 5-inch ceiling speaker with a 100V line transformer and 6W/3W taps, 90dB sensitivity and spring clip mounting into a 150mm cutout.
The AP-C12 is the compact ceiling speaker in AVTRON's analogue range, using a 5-inch full-range paper cone driver where a 6.5-inch unit would be more speaker than the room needs.
A 100V line transformer with 6W and 3W taps allows level balancing at each speaker, so a corridor and an adjacent quiet office can share a zone without one being wrong.
Spring clip mounting fixes the speaker into a 150mm cutout quickly and securely — no bridges, no additional brackets — which adds up across a fit-out.
Sensitivity is 90dB at 1W/1M with maximum output around 95dB, covering 150Hz-15kHz. The ABS enclosure with metal grille measures 175mm diameter x 60mm in an off-white finish, weighing under 0.5kg.
| Rated power out | 6W/3W |
|---|---|
| Rated power at 100V | - |
| Rated power at 70V | - |
| Line input | 70V/100V LMT |
| SPL | 90dB at 1W/1M, Max up to 95dB |
| Speaker type | 5" full range speaker |
| Freq. response | 150Hz-15KHz |
| Cutout size | 150mm Dia. |
| Product dimension | 175mm Dia. X 60(H) |
| Distortion | Distortion |
| Installation | In Ceiling |
| Enclosure | Plastic |
| Back cover | ABS Plastic, Metal Grille |
| Color | off white |
| Weight | <0.5Kg |
