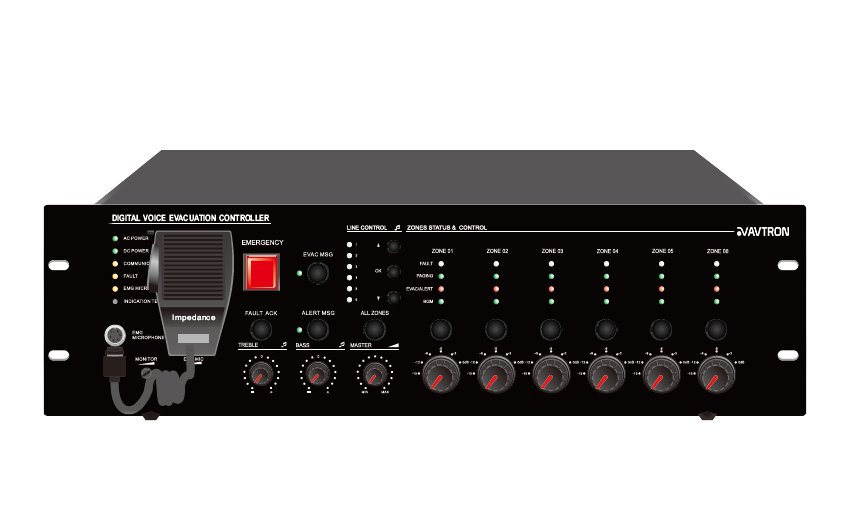

SKU: AP-D650EV
Six zone EVAC voice alarm controller with a 500W Class D amplifier, supervised A/B speaker lines, 255 stored messages and a ten year event log.
The AP-D650EV is the higher-powered six zone EVAC controller, delivering 500W for buildings whose speaker load exceeds what a 240W unit can drive.
Six zones run A and B speaker lines with low impedance monitoring, continuously supervising circuit integrity so faults are reported as they occur rather than found during an emergency.
Up to 255 MP3 or WMA messages are stored on SD card, allowing evacuation, alert and zone-specific announcements to be held ready. Eight programmable control inputs and outputs plus fault, EVAC and reset contacts tie the system to fire detection and building management.
The event log retains up to 1000 records over ten years. Inputs cover balanced mic/line, RCA and a fireman's microphone; output is 100V across A/B zone lines at 80Hz-20kHz with signal-to-noise better than 70dB. Power is 200-260V AC with 24V DC backup at 550W.
| Rated Power Output | 500W |
|---|---|
| Inputs 1, 2 | 390mV, 10kΩ, MIC/Line In, Balanced |
| Inputs 3 ~ 6 | 350mV, 10kΩ, RCA |
| Frequency Response | 80Hz ~ 20kHz |
| Rec Out | 200mV |
| Speaker Output | 100V, AB 6 Zone Speaker Out |
| Fireman Microphone | 5mv, 600Ω |
| S/N Ratio | >70dB |
| THD | <1%, 1KHz |
| Control Input | 8 programmable Max 3.3V(voltage mode) or 0V closed contact |
| Control Output | 8 programmable 0V closed contact, Fault & EVAC 0V closed contact, Reset Input 0V closed contact |
| Voice Record message | MP3/WMA format, max 255 message, In SD-Card or by Player |
| Log Record | Last 10 years up to 1000 records |
| Power Input | 200-260V AC, 24V DC, Fuse Protection(Optional 115V) |
| Power Consumption | 550W |
| Working Temp. & Humidity | -5 ℃ ~ 40 ℃, ≤ 95%RH (Not condensing) |
| Mount | 19" Rack Mount, Table Top |
| Enclosure & Color | Full Metal, Black |
| Dimension & Weight | 132(H) x 483(W) x 450(D) mm, <21Kg |
