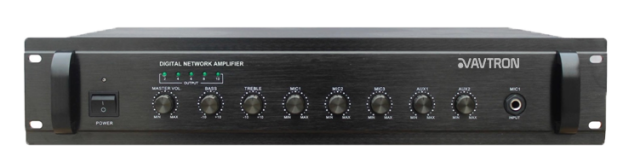

SKU: AP-N9EC500
500W network mixer power amplifier topping the AP-N9EC series, with 100V, 70V and 8 ohm outputs, built-in network audio decoding and LCD status in a 2U chassis.
The AP-N9EC500 is the largest amplifier in the AP-N9EC series, for zones where speaker count and coverage area push past what a 350W tap can carry — large industrial floors, transport terminals, sports facilities.
It keeps the series' three microphone and two line inputs plus 100V, 70V and 8 ohm speaker outputs, so the wiring approach does not change as a site scales up.
Network paging and scheduled audio decode on board across ADPCM, MP3, MP2 and PCM with delay under 100ms. Distortion is at or under 0.3% and signal-to-noise 85dB or better across 20Hz-16kHz, with a 144 x 32 LCD for local status.
The 2U full-metal chassis is 88 x 483 x 370mm at under 15kg, drawing 640W from 200-240V AC at 50-60Hz.
| Rated Power Out | 500W |
|---|---|
| Audio Input | 3 MIC in, 2 Line in |
| Audio Output | 1 Line out |
| Speaker out | 100V/70V, 8 Ohms |
| Display Screen | LCD type 144x32 |
| Network protocol | TCP,UDP,IGMP,DNS |
| Network Port | RJ-45(10/100Mbps) |
| Audio Compression | ADPCM,MP3, MP2, PCM |
| Audio bitrate | 8kHz～44.1kHz |
| Audio Delay | <100 ms (millisecond) |
| S/N Ratio | ≥85dB |
| Frequency response | 20Hz-16KHz |
| THD | ≤0.3% |
| Power Input | 200-240V AC, 50-60Hz |
| Power Consumption | 640W |
| Working Temp. & Humidity | -5 ℃ ~ 40 ℃, ≤ 90%RH (Not Condensing) |
| Mount | 19" Rack mount, Table top |
| Enclosure & Color | Full metal, Black |
| Dimension & Weight | 88(H) x 483(W) x 370(D) mm, <15Kg |
