SKU: AP-C15

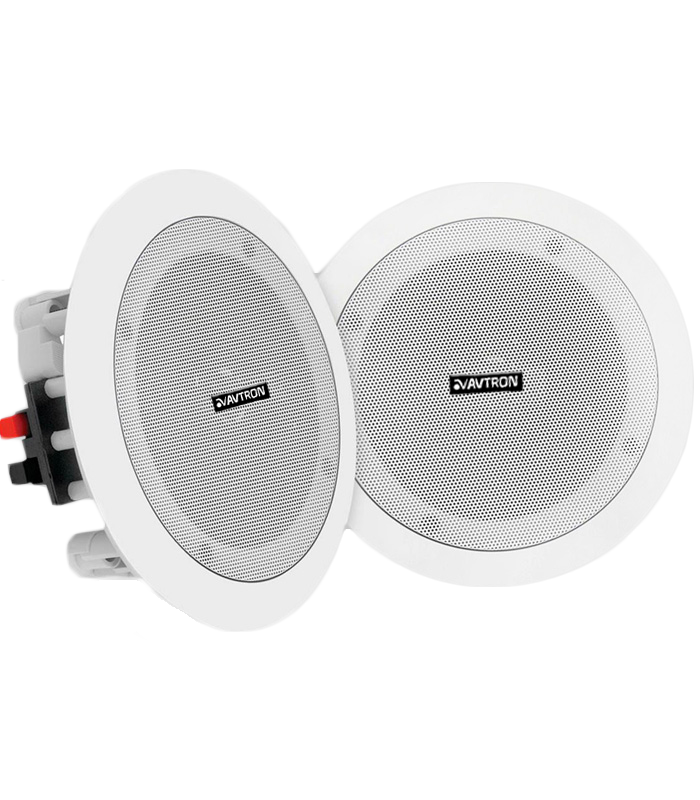

6-inch dual cone coaxial ceiling speaker with 100V/70V line matching transformer and taps at 10W, 5W and 2.5W, reaching 92dB sensitivity in a metal enclosure.
The AP-C15 is a 6-inch coaxial ceiling speaker for larger rooms carrying both background music and announcements.
The dual cone coaxial arrangement extends the top end beyond what a plain full-range paper cone manages, which is the difference between music that sounds present and music that sounds muffled through a ceiling.
Line matching transformer taps at 10W, 5W and 2.5W on a constant 100V or 70V line allow level to be trimmed per position, so a large open area and a quieter adjoining space can share a zone.
Sensitivity is 92dB at 1W/1M with maximum output to 103dB, covering 110Hz-13kHz with distortion under 3%. The metal enclosure with ABS back and metal grille is 230mm diameter x 85mm needing a 195mm cutout, weighing under 1.4kg in light white.
| Rated power out | 2.5/5/10W |
|---|---|
| Rated power at 100V | - |
| Rated power at 70V | - |
| Line input | 70V/100V LMT |
| SPL | 92dB at 1W/1M, Max up to 103dB |
| Speaker type | 6" full range speaker |
| Freq. response | 110Hz-13KHz |
| Cutout size | 195mm Dia. |
| Product dimension | 230 x 85mm(H) Dia. |
| Distortion | <3% |
| Installation | In Ceiling |
| Enclosure | Metal |
| Back cover | ABS Plastic, Metal Grille |
| Color | light White |
| Weight | <1.4Kg |
