SKU: AP-C17

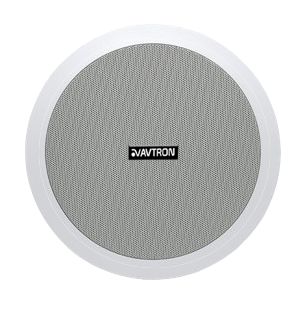

High power 6-inch two-way ceiling speaker with a PP woofer and 1-inch treble driver, taps at 30W, 15W and 10W on 100V/70V line, reaching 102dB maximum.
The AP-C17 is the high-power 6-inch ceiling speaker in AVTRON's range, rated to 30W for spaces with high ceilings or high ambient noise where a 10W unit cannot deliver enough level at the listener.
A polypropylene woofer handles the extra power without the cone breakup a paper driver shows when pushed, paired with a 1-inch treble driver in a coaxial arrangement.
The line matching transformer maintains low frequency response while increasing output for higher SPL applications, covering 90Hz-20kHz — a wider range than most ceiling speakers in commercial use.
Taps at 30W, 15W and 10W on 100V or 70V line allow level setting per position, with maximum output to 102dB. The metal enclosure with ABS back and metal grille is 230mm diameter x 150mm on a 200mm cutout, under 2.8kg in white.
| Rated power out | 30W/15W/10W |
|---|---|
| Rated power at 100V | - |
| Rated power at 70V | - |
| Line input | 70V/100V LMT |
| SPL | 89+/-3dB, Max up to 102dB |
| Speaker type | 6" PP Woofer x 1, 1" treble x 1 |
| Freq. response | 90Hz-20KHz |
| Cutout size | 200mm Dia. |
| Product dimension | 230x150mm(H) Dia. |
| Distortion | - |
| Installation | In Ceiling |
| Enclosure | Metal |
| Back cover | ABS Plastic, Metal Grille |
| Color | White |
| Weight | <2.8Kg |
