SKU: AP-ZP120

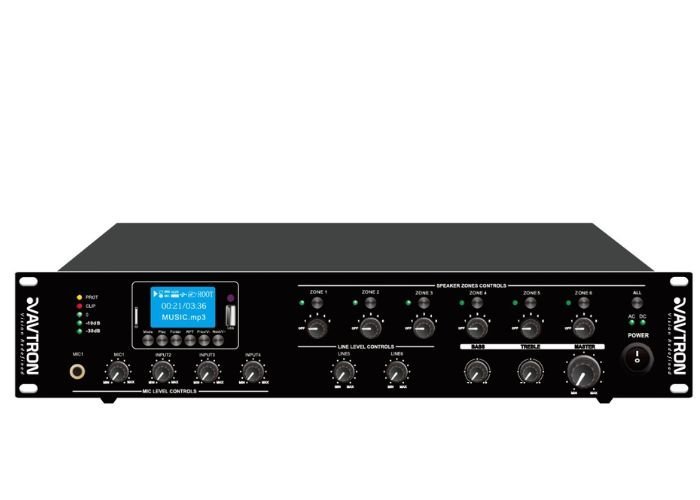

The AP-ZP120 is a complete small-system PA in one 2U box: six independently controlled zones, 120W of output and a media player, so a cafe, gym, showroom or small school can run announcements and background music without a rack of separate components.
Each zone has its own volume control, meaning music can play in one area while another sits quiet and a third takes a page. Speaker outputs cover 100V and 70V line as well as 4-16 ohm, so it works with new distributed installations and older low-impedance speaker runs alike.
Source options run from the built-in player — MP3, USB, FM radio and Bluetooth — through to microphone and line inputs. Mic 1 carries VOX highest priority, so an announcement automatically ducks the music without anyone touching a control. Balanced XLR inputs 2-4 include a mic/line switch and +48V phantom power for professional microphones, alongside RCA line inputs.
The 2U chassis rack-mounts in standard 19-inch furniture.
| Rated power output | RMS 120W |
|---|---|
| Zone speaker out | 6 Zone out |
| Inputs | 4 x MIC, 2 x Line, EMC |
| Controls | MIC volume, Treble, Bass, Master, Power switch |
| Speaker Line out | 100V, 70V, 4 ~ 16Ω |
| Frequency response | 80 ~ 16KHz |
| S/N ratio | >70dB |
| THD | <0.1% |
| Protection | Short Circuit, Overload, High Temp. |
| Power input | 200-260V AC, 24V DC |
| Power consumption | 200W |
| Working temp. & Humidity | -5 ℃ ~ 40 ℃, ≤ 95%RH (Not Condensing) |
| Mount | 19" Rack mount, Table top |
| Enclosure & Color | Full Metal, Black |
| Dimension & Weight | 88(H) x 420(W) x 320(D) mm, <12Kg |
