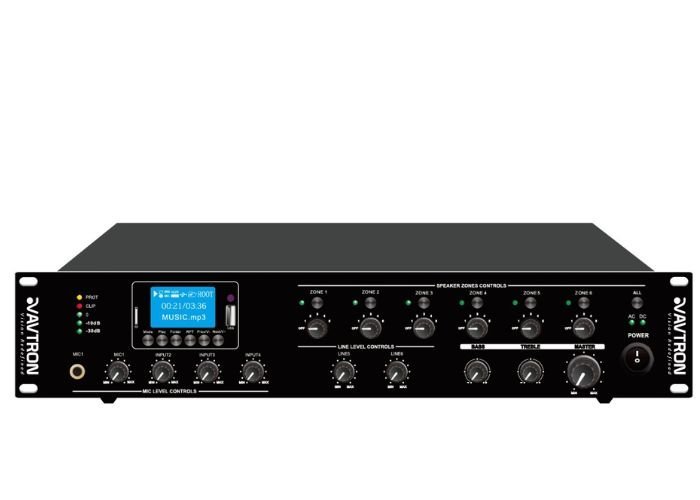

SKU: AP-ZP240
The AP-ZP240 carries four times the power of the 60W model while keeping the same six-zone layout, which suits mid-sized sites — a supermarket, a hotel ground floor, a manufacturing office block — where zone count and output both matter.
Every zone gets independent volume control, and speaker outputs span 100V line, 70V line and 4-16 ohm so the amplifier fits whatever speaker infrastructure a building already has.
The built-in media player handles MP3, USB, FM radio and Bluetooth. On the input side, Mic 1 carries VOX highest priority so announcements automatically take precedence over programme audio, backed by four balanced XLR mic/line inputs with +48V phantom power and RCA line inputs.
The 2U chassis mounts in a standard 19-inch rack.
| Rated power output | RMS 240W |
|---|---|
| Zone speaker out | 6 Zone out |
| Inputs | 4 x MIC, 2 x Line, EMC |
| Controls | MIC volume, Treble, Bass, Master, Power switch |
| Speaker Line out | 100V, 70V, 4 ~ 16Ω |
| Frequency response | 80 ~ 16KHz |
| S/N ratio | >70dB |
| THD | <0.1% |
| Protection | Short Circuit, Overload, High Temp. |
| Power input | 200-260V AC, 24V DC |
| Power consumption | 400W |
| Working temp. & Humidity | -5 ℃ ~ 40 ℃, ≤ 95%RH (Not Condensing) |
| Mount | 19" Rack mount, Table top |
| Enclosure & Color | Full metal, Black |
| Dimension & Weight | 88(H) x 420(W) x 320(D) mm, <14Kg |
