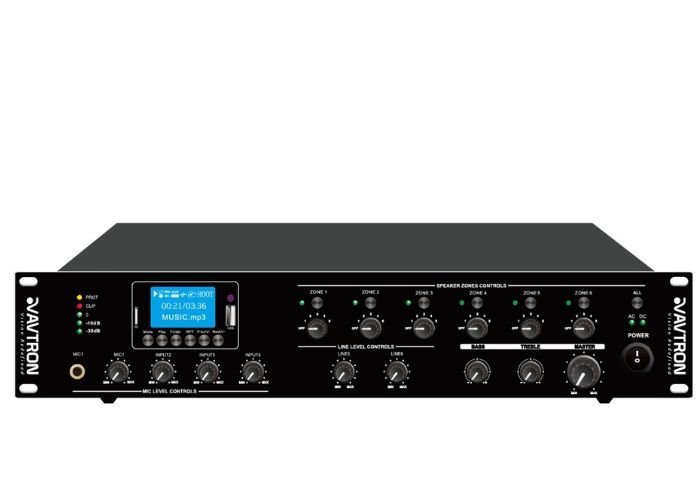

SKU: AP-ZP350
The AP-ZP350 is the second-largest of AVTRON's six-zone mixer amplifiers, for sites where the speaker load per zone is substantial — large retail floors, function centres, multi-building schools.
Six independently controlled zones run from one 2U chassis, with 100V, 70V and 4-16 ohm speaker outputs for flexibility across new and existing installations.
An EMC input with secondary priority provides an emergency override path, so a fire or evacuation feed takes the system regardless of what is playing. Mic 1 carries VOX highest priority for routine announcements, alongside four balanced XLR mic/line inputs with +48V phantom power and RCA line inputs.
The built-in player covers MP3, USB, FM radio and Bluetooth. The chassis is 2U for standard 19-inch racks.
| Rated power output | RMS 350W |
|---|---|
| Zone speaker out | 6 Zone out |
| Inputs | 4 x MIC, 2 x Line, EMC |
| Controls | MIC volume, Treble, Bass, Master, Power switch |
| Speaker Line out | 100V, 70V, 4 ~ 16Ω |
| Frequency response | 80 ~ 16KHz |
| S/N ratio | >70dB |
| THD | <0.1% |
| Protection | High temperature, Short circuit, Overload |
| Power input | 200-260V AC, 24V DC |
| Power consumption | 500W |
| Working temp. & Humidity | -5 ℃ ~ 40 ℃, ≤ 95%RH (Not Condensing) |
| Mount | 19" Rack mount, Table top |
| Enclosure & Color | Full metal, Black |
| Dimension & Weight | 88(H) x 420(W) x 320(D) mm, <16Kg |
