SKU: AP-ZP500

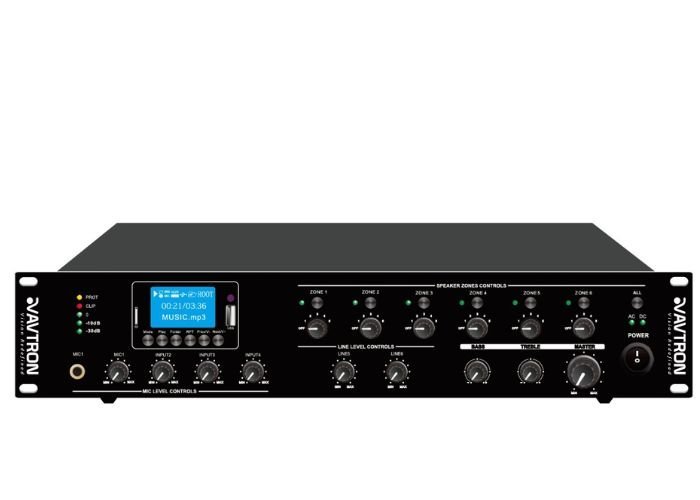

The AP-ZP500 tops AVTRON's six-zone mixer amplifier range at 500W, built for large commercial and public address installations where the whole site runs from one amplifier position.
Six zone outputs run at 100V line, with an additional single zone output that accepts 100V, 70V or 4-16 ohm — useful for a foyer, hall or outdoor area whose speakers do not match the rest of the building. Each zone has independent volume control for precise level management across areas.
The Mic 1 input arrives on a 6.3mm jack with VOX highest priority, so live announcements interrupt programme audio automatically. Further inputs cover balanced XLR mic/line with phantom power and RCA line.
A built-in media player handles MP3 playback, USB, FM radio and Bluetooth. The chassis is 2U for 19-inch rack mounting.
| Rated power output | RMS 500W |
|---|---|
| Zone speaker out | 6 Zone out |
| Inputs | 4 x MIC, 2 x Line, EMC |
| Controls | MIC volume, Treble, Bass, Master, Power switch |
| Speaker Line out | 100V, 70V, 4 ~ 16Ω |
| Frequency response | 80 ~ 16KHz |
| S/N ratio | >70dB |
| THD | <0.1% |
| Protection | High Temperature, Short Circuit, Overload |
| Power input | 200-260V AC, 24V DC |
| Power consumption | 650W |
| Working temp. & Humidity | -5 ℃ ~ 40 ℃, ≤ 95%RH (Not Condensing) |
| Mount | 19" Rack mount, Table top |
| Enclosure & Color | Full metal, Black |
| Dimension & Weight | 88(H) x 420(W) x 320(D) mm, <17Kg |
