SKU: AP-ZP60

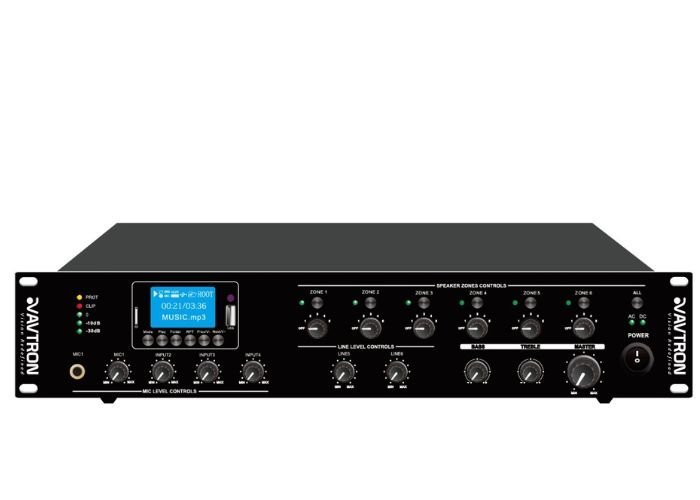

The AP-ZP60 is the smallest amplifier in AVTRON's six-zone range, and the point is the zone count rather than the wattage — a small clinic, dental practice, boutique or office suite gets six independently controlled areas from a single 2U unit.
Each zone has its own volume control, so reception can run background music while a consulting room stays silent and a corridor takes a page. Speaker outputs cover 100V and 70V line plus 4-16 ohm, which handles both new distributed wiring and existing low-impedance speakers.
The built-in media player covers MP3 files, USB drives, FM radio and Bluetooth, removing the need for a separate source device on the shelf.
Inputs include a Mic 1 with VOX highest priority that ducks music automatically when someone speaks, four balanced XLR mic/line inputs with +48V phantom power, and RCA line inputs. The chassis rack-mounts in standard 19-inch furniture.
| Rated power output | RMS 60W |
|---|---|
| Zone speaker out | 6 Zone out |
| Inputs | 4 x MIC, 2 x Line, EMC |
| Controls | MIC volume, Treble, Bass, Master, Power switch |
| Speaker Line out | 100V, 70V, 4 ~ 16Ω |
| Frequency response | 80 ~ 16KHz |
| S/N ratio | >70dB |
| THD | <0.1% |
| Protection | Short Circuit, Overload, High Temp. |
| Power input | 200-260V AC, 24V DC |
| Power consumption | 100W |
| Working temp. & Humidity | -5 ℃ ~ 40 ℃, ≤ 95%RH (Not Condensing) |
| Mount | 19" Rack mount, Table top |
| Enclosure & Color | Full metal, Black |
| Dimension & Weight | 88(H) x 420(W) x 320(D) mm, <10Kg |
