SKU: AP-N8A60

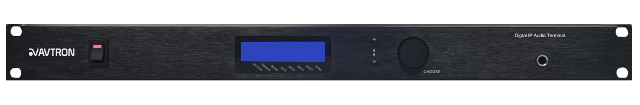

60W Class D network mixer amplifier with three microphone and three auxiliary/line inputs, 100V line output and alarm I/O, in a 1U rack chassis.
The AP-N8A60 is the entry point of the AVTRON network mixer amplifier range, sized for a small site or a single wing — an office floor, a clinic, a compact retail space.
Mixing and network audio are combined in one 1U box: three microphone inputs, two auxiliary and one line input feed the internal mixer, while the network side receives paged and scheduled audio from the IP PA system. A built-in audio controller means no separate network decoder in the rack.
A 144 x 32 LCD reports status at the rack, and 0V alarm input and output tie the amplifier into fire or building management systems. Class D output keeps consumption under 75W for 60W of audio.
Output is 100V line for distributed speakers, with signal-to-noise better than 90dB over 20Hz-16kHz. The full-metal black chassis is 44 x 483 x 408mm and under 7kg, rack or table mounted, running on 200-240V AC.
| Rated Power Out | 60W |
|---|---|
| Audio Input | 3x MIC, 2x Aux, 1x Line In |
| Audio Output | 1x Line Out, 100V Line |
| Display Screen | LCD type 144x32 |
| Network Protocol | TCP,UDP,IGMP,ICMP,ARP |
| Network Port | RJ-45(10/100Mbps) |
| Audio Compression | ADPCM,MP3, MP2, PCM |
| Audio Bitrate & Sampling | 8kHz～44.1kHz, 16bit, 8kbps-320kbps |
| Audio Delay | <105 ms(millisecond) |
| S/N Ratio | >90dB, 20Hz-16KHz |
| Alarm | 1x 0V Alarm In, 1x 0V Alarm Out |
| Power Input | 200-240V AC or 110V AC, Fuse Protection |
| Power Consumption | <75W |
| Working Temp. & Humidity | -10 ℃ ~ 50 ℃, ≤ 90%RH (Not Condensing) |
| Mount | 1U 19" Rack Mount, Table Top |
| Enclosure & Color | Full Metal, Black |
| Dimension & Weight | 44(H) x 483(W) x 408(D) mm, <7Kg |
