SKU: AP-VC60F
60W five-step volume controller with a 24V DC override relay that restores full level for priority announcements, on 100V or 70V line with 33dB total attenuation.
The AP-VC60F is the override variant of the 60W controller, for medium zones that must remain reachable by a paging or evacuation call.
Under normal operation it attenuates in five resistive steps of 3dB to 33dB total and can be switched fully off. A 24V DC priority signal drops the relay, bypasses the attenuator and delivers the announcement at full level, then releases the zone back to its previous setting.

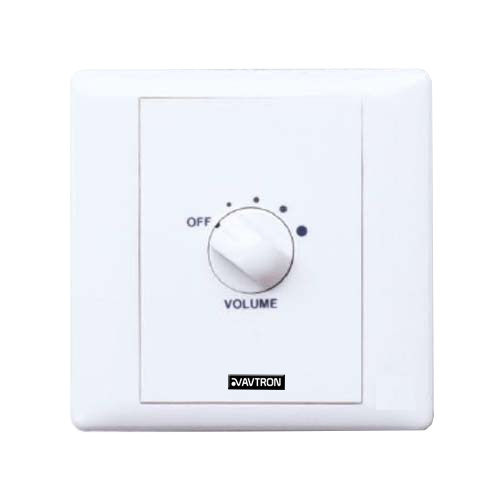

The white UV-protected ABS plate measures 86 x 86mm with 60mm depth, mounts surface or in-wall, and weighs under 200g.
| Power Rating | 60W |
|---|---|
| 24V Relay Override | Yes |
| Line Input | 100V or 70V |
| Volume Step | 5 steps Resistive, Mono |
| Attenuation Per Step | 3dB |
| Total Attenuation | 33dB |
| Enclosure | UV-protected ABS |
| Color | White |
| Mounting Way | Surface Mount or in-Wall Mount |
| Product Depth | 60mm |
| Outer Plate Dimension | 86(W)×86(D)mm |
| Weight | <200g |
