SKU: AP-VC60

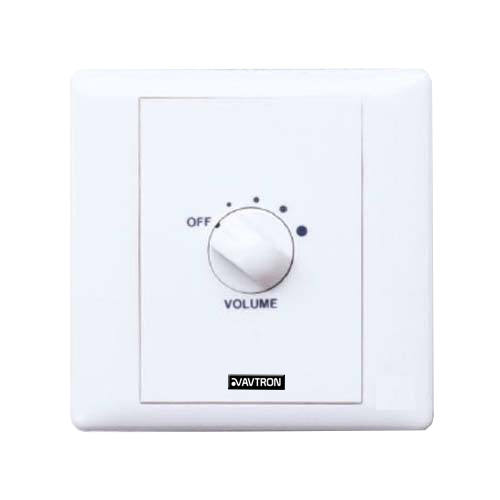

60W five-step volume controller for 100V and 70V line systems, giving 3dB per step to 33dB total attenuation from a white UV-protected ABS wall plate.
The AP-VC60 covers zones that carry more than a couple of speakers but fall short of a full 120W tap — a corridor run, a mid-sized workshop, a cafe with a distributed ceiling array.
Five resistive steps drop 3dB each to 33dB total, with a full-off position, and the built-in transformer accepts 100V or 70V line input directly at the outlet.
The UV-protected white ABS plate is 86 x 86mm with 60mm depth for surface or in-wall mounting, weighing under 100g.
| Color | White |
|---|---|
| Power Rating | 60W |
| Line Input | 100V or 70V |
| Volume Step | 5 steps Resistive, Mono |
| Attenuation Per Step | 3dB |
| Total Attenuation | 33dB |
| Enclosure | UV-protected ABS |
| Color | White |
| Mounting Way | Surface Mount or in-Wall Mount |
| Product Depth | 60mm |
| Outer Plate Dimension | 86(W)×86(D)mm |
| Weight | <100g |
