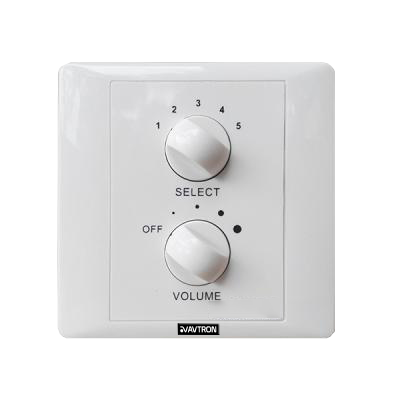

AVTRON 6W Override Volume Controller with Channel Selector – AP-VC6F

SKU: AP-VC6F

The AP-VC6F is the fully featured small-zone plate: source selection and emergency override in one outlet. Occupants pick from five programme channels and set their own level; a 24V DC relay overrides both when a priority announcement is broadcast.

That combination suits hotel rooms, patient rooms and private offices — spaces where people expect control over what they hear, but which must still be reachable by a paging or evacuation call.

Four volume levels plus full off cover normal use, and the built-in transformer handles the line feed. The UV-protected off-white ABS plate resists yellowing and mounts surface or in-wall.

🔒
Trade Account Required
Log in to see trade pricing and add to cart — or request a quote, no account needed.
  • 24V DC Relay for Override priority announcement
  • 6W Volume Controller built in 5 input source channel selector
  • 4 levels controllable Volume Range and total power off
  • UV-protected off white finish and made from ABS Plastic
  • Built-in transformer to control the PA 100V or 70V line loud
  • speakers(Optional)
  • Surface mount installation

Specifications

Description100V Volume Controller
Power Rating6W
24V Relay OverrideYes
Channel Selector5 channel Input Source
Line Input100V or 70V
Volume Step5 steps Resistive, Mono
Attenuation Per Step3dB
Total Attenuation33dB
EnclosureUV-protected ABS
ColorWhite
Mounting WaySurface Mount or in-Wall Mount
Product Depth50mm
Outer Plate Dimension86(W)×86(D)mm
Weight<100g
